esp32s3-touch-lcd7
This page discusses issues unique to NuttX configurations for the ESP32S3-Touch-LCD-7 board.

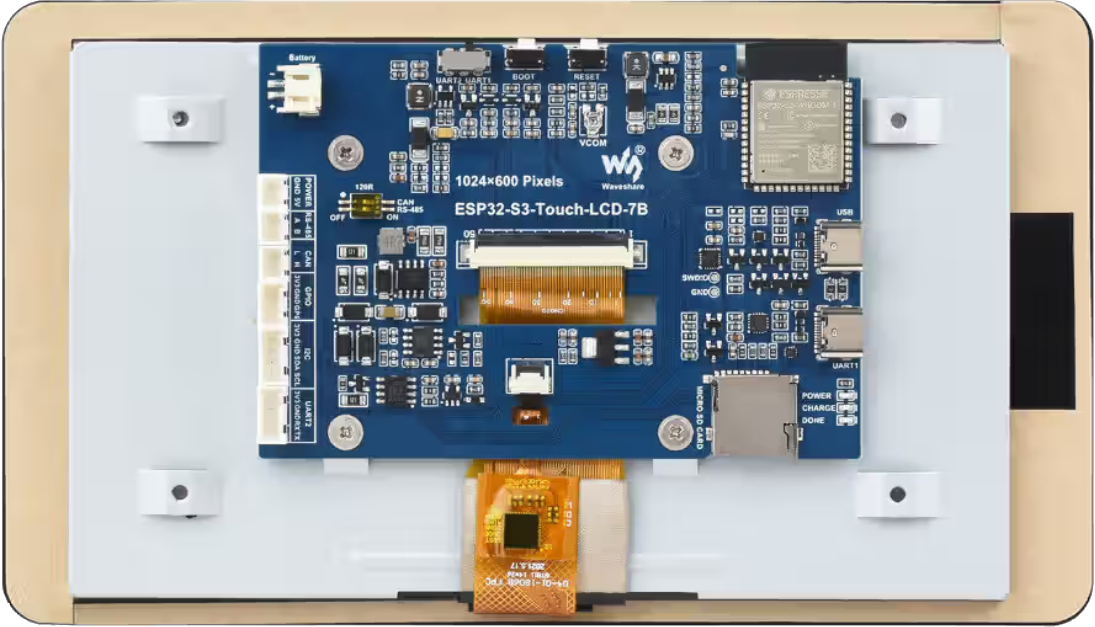

The Waveshare ESP32-S3-Touch-LCD-7 is a feature rich board based on ESP32-S3-WROOM-1 module.
Features
ESP32-S3-16R8
USB-to-UART bridge via micro USB port
8MB SPI FLASH
8MB PSRAM
Onboard 7” LCD screen with 800 × 480 resolution, 65K colors
Onboard CAN, RS485, I2C interfaces, TF card slot, and integrated full-speed USB
Board documentation: https://docs.waveshare.com/ESP32-S3-Touch-LCD-7
BOARD LED
The board has three LEDs: POWER, CHARGE, DONE, but none programmable.
BOARD DISPLAY

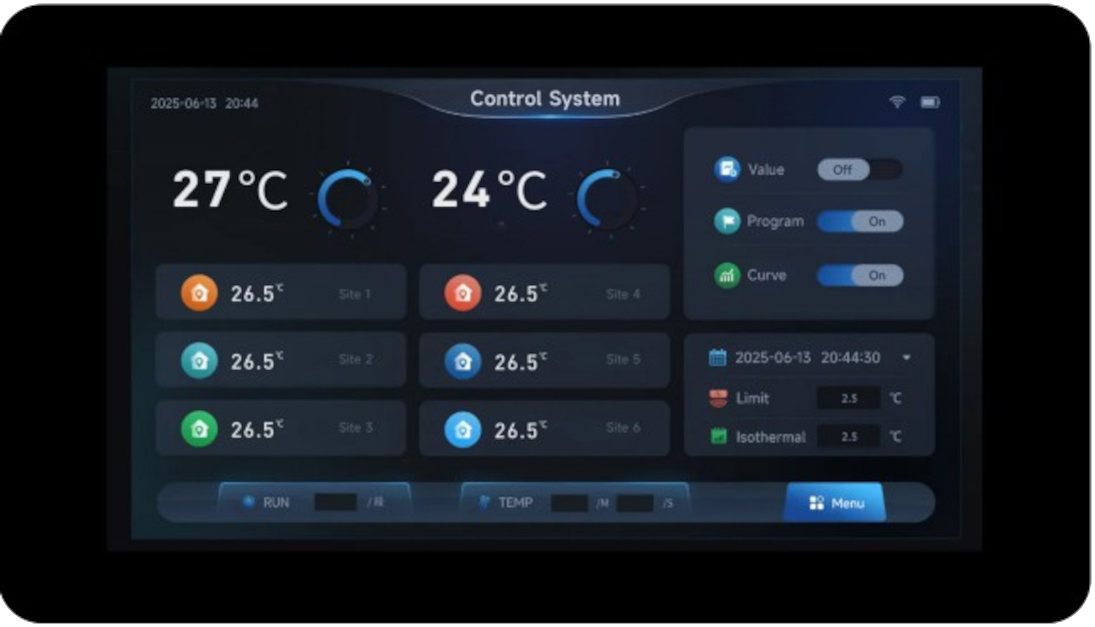

The board has a 7-inch LCD:
ESP32-S3
LCD
Description
GPIO0
G3
Green data bit 3
GPIO1
R3
Red data bit 3
GPIO2
R4
Red data bit 4
GPIO3
VSYNC
Vertical sync signal
GPIO5
DE
Data enable signal
GPIO7
PCLK
Pixel clock signal
GPIO10
B7
Blue data bit 7
GPIO14
B3
Blue data bit 3
GPIO17
B6
Blue data bit 6
GPIO18
B5
Blue data bit 5
GPIO21
G7
Green data bit 7
GPIO38
B4
Blue data bit 4
GPIO39
G2
Green data bit 2
GPIO40
R7
Red data bit 7
GPIO41
R6
Red data bit 6
GPIO42
R5
Red data bit 5
GPIO45
G4
Green data bit 4
GPIO46
HSYNC
Horizontal sync signal
GPIO47
G6
Green data bit 6
GPIO48
G5
Green data bit 5
CH422G
LCD
EXIO2
DISP
Backlight enable pin
Configurations
All of the configurations presented below can be tested by running the following commands:
$ ./tools/configure.sh esp32s3-touch-lcd7:<config-name>
Where <subdir> is one of the following:
Configuration Directories
usbnsh
Configures the NuttShell (nsh) located at apps/examples/nsh. This configuration enables a serial console over USB.
After flashing and reboot your board you should see in your dmesg logs:
$ sudo dmesg | tail
[ 3315.687219] usb 3-1.1.1: new full-speed USB device number 10 using xhci_hcd
[ 3315.778666] usb 3-1.1.1: New USB device found, idVendor=0525, idProduct=a4a7, bcdDevice= 1.01
[ 3315.778684] usb 3-1.1.1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 3315.778689] usb 3-1.1.1: Product: CDC/ACM Serial
[ 3315.778694] usb 3-1.1.1: Manufacturer: NuttX
[ 3315.778697] usb 3-1.1.1: SerialNumber: 0
[ 3315.829695] cdc_acm 3-1.1.1:1.0: ttyACM0: USB ACM device
[ 3315.829725] usbcore: registered new interface driver cdc_acm
[ 3315.829727] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
You may need to press ENTER 3 times before the NSH show up.
