IMX93QSB-M33

Tags: arch:arm arch:armv8m arch:cm33 chip:imx93 vendor:nxp

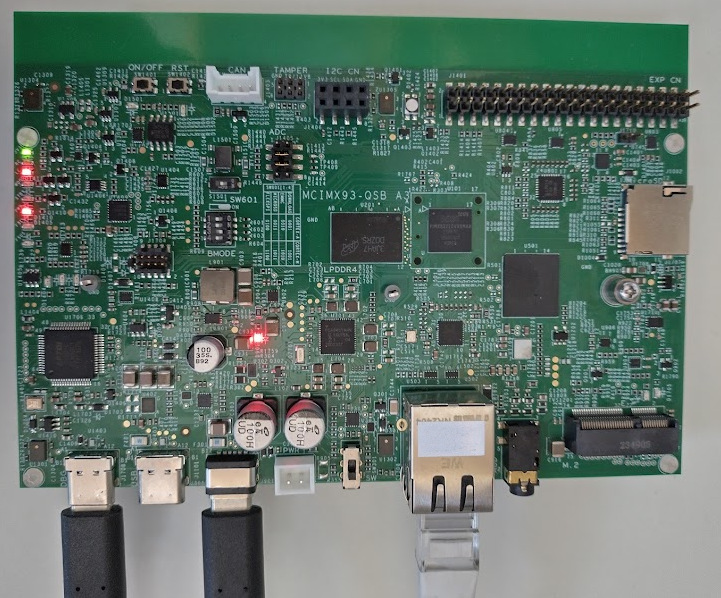

The IMX93-QSB board is a platform made by NXP, designed to show the most commonly used features of the i.MX 93 applications processor.

Be sure to visit the IMX93QSB product page.

i.MX93-QSB simplified block diagram

Features

Multicore Processing [1]
- 2x Arm Cortex-A55
- 1x Arm Cortex-M33
Memory
- On-Chip Memory

  256kB TCM (ITCM + DTCM)

  640kB OCRAM
- External Memory

  2GB LPDDR4X
Storage
- 16GB eMMC
- 1x Octal SPI, including support for SPI NOR and SPI NAND memories
- µSDcard
Connectivity
- CAN FD
- UART/USART
- I²C
- SPI
- SAI
- Ethernet
- WiFi/BT (Through M2 module)
On board peripherals
- IMU (ST LSM6DSOXTR)
- Audio CODEC (Cirrus WM8962B)

Note that by default the interfaces and peripherals are configured for use by the A55 core in Linux.

Warning

Other than LPUART2 as console, as of today no other interfaces have been tested from the M33 core in NuttX.

USB-to-UART bridge

The “DBG” USB-C connector connects to an FTDI 4232 chip. It has four channels:

SWD/JTAG interface (OpenOCD)
I2C master
Debug UART for A55 core
Debug UART for M33 core (typically /dev/ttyUSB3)

Default settings for the debug UARTs are 115200 8N1.

Firmware Location

Instruction Tightly Coupled Memory (ITCM)

The Tightly-Coupled Memory (TCM) provides low-latency, deterministic access without cache unpredictability. By default, firmware is located in ITCM (128kB). This is the preferred location for real-time and latency-sensitive workloads but gets full quite fast.

DDR

DDR memory can be used when the code or data footprint exceeds TCM capacity. When running from DDR, the XCache (external cache) should be enabled to achieve acceptable performance. The following adaptations are required on the other core:

imx-atf (Arm Trusted Firmware) - https://github.com/nxp-imx/imx-atf.git must grant the application M33 core access to the DDR region for code execution.

The required change is in plat/imx/imx93/trdc_config.h: for the MRC0 DRAM entry belonging to the M33 (DID2), change the GLBAC index from 0 to 1 and the lock flag from true to false. This grants the M33 read/write access to the full DDR region using the permissive GLBAC1 policy, matching the access configuration used by the A55 and other bus masters.
Linux on A55 must reserve the DDR region in the device tree:

/ {
    reserved-memory {
        m33_reserved: m33@89000000 {
            no-map;
            reg = <0 0x89000000 0 0x1000000>;
        };
    };
};
&cm33 {
    memory-region = <&vdevbuffer>, <&vdev0vring0>, <&vdev0vring1>,
            <&vdev1vring0>, <&vdev1vring1>, <&rsc_table>, <&m33_reserved>;
};

XCache

The i.MX93 Cortex-M33 can make use of the external cache (XCACHE) to improve performance when executing from or accessing DDR memory. The nsh-ddr configuration enables XCACHE. Cache coherency with the A55 must be managed carefully.

Installation

Except for the modifications documented here, the configurations should run from the default Linux image as provided with the development kit.

It is highly advised to configure a yocto environment for development on the Linux side of the i.MX93. More information on the NXP application notes and manuals which you can find through the NXP iMX93 processor link above.

Building NuttX

To configure and build NuttX you follow the standard NuttX flow:

$ cd nuttx
$ tools/configure.sh imx93-qsb:rpmsg
$ make

Board specific feature: * CONFIG_IMX93_START_NSH_ON_RPMSG: Start an extra NSH instance on a RPMSG UART

Launching

The supported boot configuration is to boot the A55 first and from here boot the auxiliary CPU (M33).

There are two supported options to start the NuttX image:

1. Use remoteproc in Linux

Copy the ELF file of the nuttx build (filename nuttx) to /lib/firmware/rproc-imx-rproc-fw, on the A55 core (Linux). This is the default firmware name for this remoteproc. If using an alternative name, be sure to enter this in /sys/class/remoteproc/remoteproc0/firmware.

Then start the M33:

$ echo start > /sys/class/remoteproc/remoteproc0/state

2. From the bootloader

Copy the binary file (nuttx.bin) to the boot partition in Linux, typically this is /dev/mmcblk0p1, but depends on the partitioning scheme.

In the bootloader, load the file and start the auxiliary CPU:

u-boot=> fatload mmc 0:1 0x89000000 nuttx.bin
u-boot=> dcache flush
u-boot=> bootaux 0x89000000

Todo

Loading from the bootloader currently only works for DDR builds as the bootloader doesn’t have access to ITCM by default. Also, the remoteproc initialisation in Linux fails when booting the A55 later. To be investigated.

Debugging

Disable UART5 in the Linux devicetree for using the JTAG/SWD interface as there is a pin conflict otherwise. You should also remove the M2 module from its slot.

In a devicetree overlay:

&lpuart5 {
    /* BT */
    status = "disabled";
};

The IMX93-QSB board provides a standard JTAG/SWD header for connecting an external debug probe (e.g. J-Link or CMSIS-DAP) to debug the Cortex-M33 core.

For starting the J-Link gdb server:

$ JLinkGDBServer -device MIMX9322_M33 -if JTAG -speed 4000 -noir -rtos RTOSPlugin_NuttX.so

Note

The default initialisation of JLink does not allow loading the ELF and starting the M33 when it is still in reset. Some CPU registers are not properly initialized. It is easiest to have remoteproc load and start the firmware first and only then connect the debugger. Loading the ELF through the debugger works afterwards.

The on-board debug interface can alternatively be used via the USB DEBUG connection (see channel 1 above). In order for this to work, you need to set GPIO 4 (rc_sel) of the I2C IO expander at address 0x21. This I2C bus can be accessed through the same USB interface at channel 2. The enable_onboard_debug.py script in the tools directory accomplishes just that, using pyftdi.

Configurations

Only a set of basic configurations are provided at this time. No IO’s directly connected to the M33, other than the debug UART, are tested as of today.

nsh

Very basic configuration which only spawns nsh on the debug serial port. The firmware runs from ITCM. This configuration is focused on low-level, command-line driver testing. Built-in applications are supported but none are enabled by default.

nsh-ddr

Identical to the nsh configuration but the firmware is linked to run from DDR memory. The XCache (CONFIG_ARCH_HAVE_XCACHE) is enabled to compensate for DDR latency. This configuration is useful when the firmware footprint exceeds ITCM capacity.

Note

See requirements for running from DDR above.

rpmsg

Configures the NuttShell (nsh) running from ITCM and enables the Remote Processor Messaging (RPMsg) service for heterogeneous inter-core communication with the A55/Linux. A virtual UART (CONFIG_RPMSG_UART_RAW) is exposed over RPMsg, allowing a terminal session to be opened from Linux. The physical UART is still the main console and also hosts an NSH instance to help debugging.

After launching, simply open /dev/ttyRPMSG0 on the Linux side:

$ minicom -D /dev/ttyRPMSG0
