nxstore

nxstore is an LVGL front end for nxpkg. It displays the packages in the synchronized catalog, installs a selected package on a worker thread, launches installed Dynamic ELF applications, and supervises the one application currently using the display.

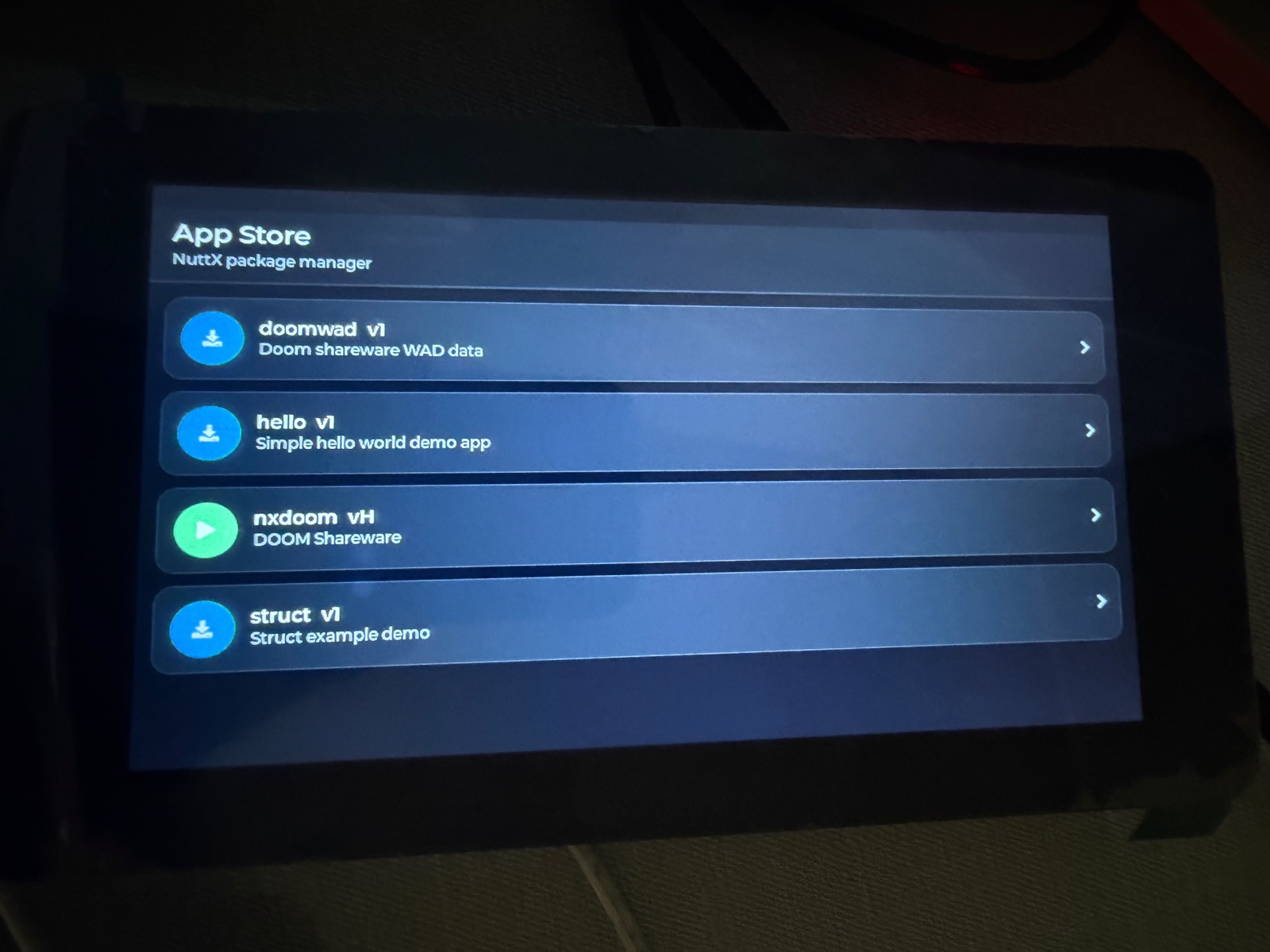

NXStore package catalog running on an ESP32-S3 touchscreen board

NXStore package catalog running on a Waveshare ESP32-S3-Touch-LCD-7 board.

Configuration

Enable CONFIG_SYSTEM_NXSTORE. It depends on CONFIG_GRAPHICS_LVGL and CONFIG_SYSTEM_NXPKG. Its principal options are:

  • CONFIG_SYSTEM_NXSTORE_PROGNAME

  • CONFIG_SYSTEM_NXSTORE_PRIORITY

  • CONFIG_SYSTEM_NXSTORE_STACKSIZE

  • CONFIG_SYSTEM_NXSTORE_FBDEVPATH

  • CONFIG_SYSTEM_NXSTORE_INPUT_DEVPATH

The framebuffer and input paths default to /dev/fb0 and /dev/input0. The board must provide LVGL-compatible display and input drivers. nxpkg must use a writable storage root, and remote synchronization additionally requires the networking options described in the nxpkg documentation.

Starting the store

With no argument, nxstore opens the last catalog synchronized by nxpkg:

nsh> nxstore

An optional index URL asks the store to synchronize before drawing the list:

nsh> nxstore http://192.0.2.1:8000/index.json

Transient network failures are retried for a bounded interval. If synchronization still fails, the UI reports the failure and uses the last valid cached catalog when one exists. Invalid metadata and local storage errors are not retried.

Interaction

Each catalog package appears once, using its newest compatible version.

  • Tap an uninstalled package to install and launch it.

  • Tap an installed package to launch its current installed version.

  • Long-press an installed package to remove all its installed versions.

  • Tap Close on the running-application screen to request termination.

Installation runs outside the LVGL thread so progress remains visible. LVGL objects are updated only by the main UI thread. Launch arguments are read from the stored manifest for the current installed version, including after a rollback.

Application termination contract

The Close control sends SIGTERM to the launched process. A long-running application should install a signal handler that performs only an async-signal-safe action, such as setting a volatile sig_atomic_t flag, and then poll that flag from its main loop. The normal execution path should release framebuffer, input, and other resources before returning.

nxstore does not force-delete an application that ignores SIGTERM. Forceful task deletion can interrupt display, heap, or filesystem operations and leave the system in an unsafe state. Until the child exits, the store keeps the running-application screen visible and does not hand the display back to the package list.

The store and the launched application share one framebuffer. A framebuffer application must leave the top NXSTORE_BAR_HEIGHT pixels untouched so the supervisor bar remains visible. Include <system/nxstore_chrome.h> instead of duplicating the current height.

Current limitations

Only one install worker and one supervised application are supported at a time. The launcher currently uses one fixed, generous stack size for all packages because the manifest format does not carry a per-application stack requirement. Applications that cannot reserve the supervisor strip are not currently suitable for launch from nxstore.
