nxcamera Camera/Video Stream Test Command

Introduction

nxcamera is a command-line utility for testing camera devices and video stream capture in NuttX. It is built on top of the NuttX video subsystem (using a V4L2-style interface) and is typically used to:

  • Enumerate and open video device nodes such as /dev/video0 and /dev/video1

  • Configure capture parameters including resolution and pixel format

  • Capture video frames for validation, debugging, or simple data dumping, depending on platform support and build configuration

Usage

nxcamera is an interactive command-line program. Start it from NSH, then enter commands at the nxcamera> prompt:

nsh> nxcamera
nxcamera>

Tip: Execute NSH Commands (Hidden)

At the nxcamera> prompt you can run an NSH command by prefixing it with !. This is useful for quickly checking system state or invoking other utilities without exiting nxcamera.

nxcamera> !ls /dev
/dev:
 console
 fb0
 gpio0
 gpio1
 gpio2
 gpio3
 loop
 null
 oneshot
 ram0
 ram1
 ram2
 video0
 video1
 zero
nxcamera> !poweroff
bash>

A typical workflow at the prompt is:

  • input /dev/video0 to set the input video node.

  • output /dev/fb0 to set the output node, for example a framebuffer.

  • stream 640 480 30 NV12 to start streaming with width height fps format.

  • stop to stop streaming.

You may just copy-paste the commands below to get started:

nxcamera
input /dev/video0
output /dev/fb0
stream 640 480 30 YUYV # or NV12 on macOS

Pixel Format

For the stream command, the pixel format depends on the platform. On the macOS sim platform you may use NV12, while on Linux systems YUYV is more commonly used.

Examples

  1. Start nxcamera and configure a typical interactive capture session:

nsh> nxcamera
nxcamera> input /dev/video0
nxcamera> output /dev/fb0
nxcamera> stream 640 480 30 NV12
nxcamera> stop

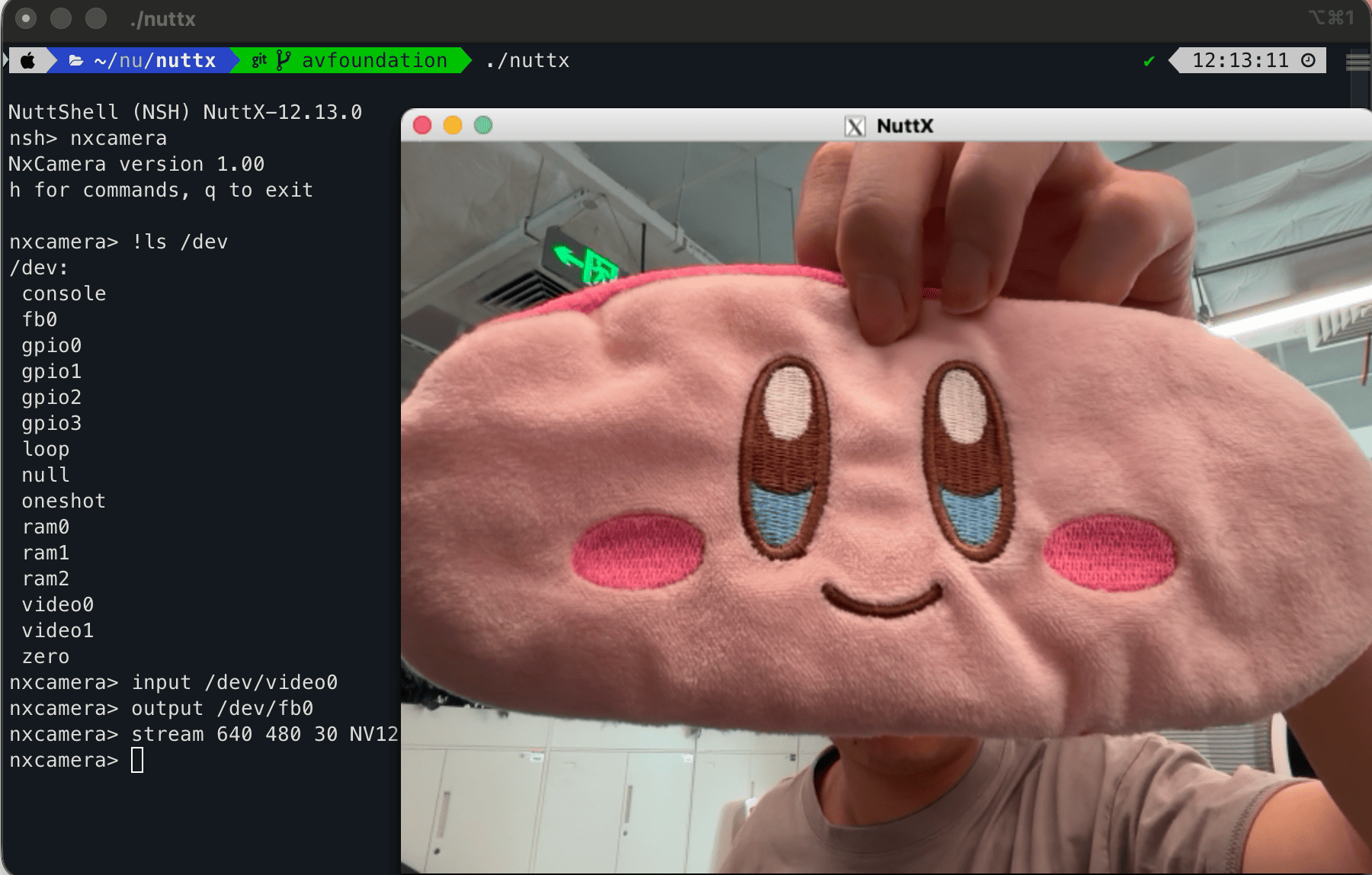

nxcamera running on the macOS SIM platform

nxcamera using the macOS AVFoundation backend on the SIM platform.

Features and Updates

  • Multiple camera instances are supported, allowing several cameras to be exposed as different device nodes such as /dev/video0 and /dev/video1. This makes it easier to select and validate different video input sources on the same system.

  • On the sim platform, support has been added for the macOS AVFoundation backend. This enables camera capture and functional verification on macOS hosts, subject to build configuration and host permission settings.
