Realtek RTL8730E-EVB

Tags: chip:rtl8730e arch:arm vendor:realtek

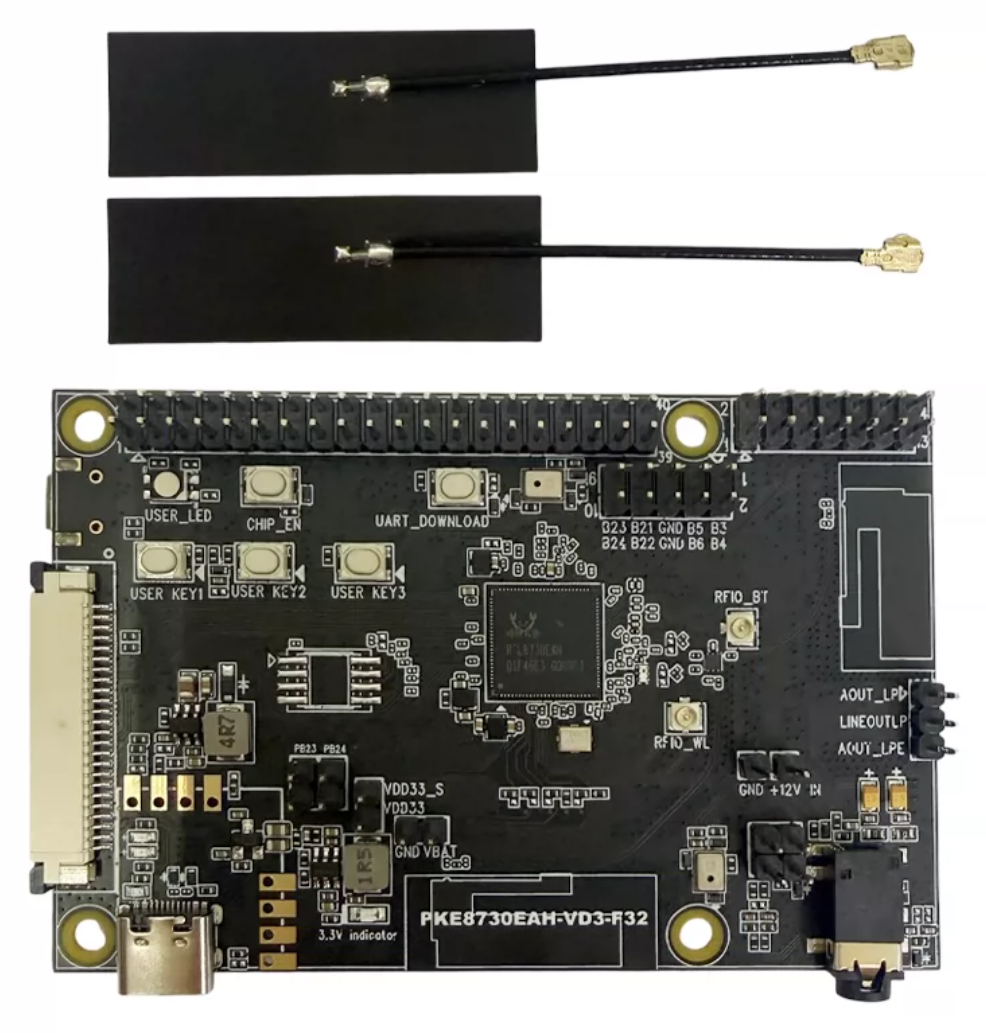

Realtek RTL8730E EVB development board

The RTL8730E EVB development board.

The RTL8730E_EVB is a Realtek RTL8730E evaluation board built around the RTL8730EH (DDR2 64 MB, 16 MB NOR flash). NuttX runs on the dual-core Arm Cortex-A32 application processor at up to 1.2 GHz as BL33 in the ATF boot chain. See the RTL8730E chip documentation for the full SoC specifications and vendor-SDK dependency.

Features

  • RTL8730EH: dual-core Arm Cortex-A32 up to 1.2 GHz, 64 MB DDR2, 16 MB NOR flash

  • Symmetric Multi-Processing (SMP) on both Cortex-A32 cores

  • Wi-Fi 6 (802.11ax) dual-band (2.4 / 5 GHz) station and SoftAP

  • Bluetooth 5 dual-mode (BR/EDR + LE)

  • SPI NOR flash with littlefs at /data

  • LOG-UART console at 1500000 8N1

Supported in this NuttX port:

  • NSH shell over the LOG-UART console

  • SMP on both Cortex-A32 cores; tasks are dispatched across CPU0 and CPU1 by the NuttX SMP scheduler

  • GPIO pins exposed as /dev/gpioN character devices (input, output and interrupt), driven through the SDK fwlib ROM layer

  • General-purpose UARTs exposed as /dev/ttySN serial devices, driven through the SDK fwlib ROM layer (the LOG-UART owns the console and /dev/ttyS0)

  • I2C master buses exposed as /dev/i2cN character devices, driven in polling mode through the SDK fwlib register layer

  • SPI master buses exposed as /dev/spiN character devices, driven in polling mode through the SDK fwlib register layer

  • PWM output exposed as a /dev/pwm0 character device, driven directly on the SDK fwlib timer layer

  • General-purpose timers exposed as /dev/timerN character devices, with microsecond timeouts and a periodic expiration callback

  • On-chip watchdog exposed as a /dev/watchdog0 character device

  • 12-bit ADC exposed as a /dev/adc0 character device, sampled in polling mode through the SDK fwlib register layer

  • On-chip RTC exposed as a /dev/rtc0 character device, with a one-shot alarm

  • littlefs persistent storage mounted at /data (a dedicated SPI NOR flash partition), backing the Wi-Fi key-value store

  • Wi-Fi station and SoftAP through the wapi tool

  • DHCP client (STA) and DHCP server (SoftAP)

  • /etc read-only ROMFS populated from the board’s src/etc/ tree

Configurations

Build and flash any of these per the RTL8730E build instructions.

$ ./tools/configure.sh rtl8730e_evb:<config-name>

nsh

Networking-enabled NSH with SMP, littlefs at /data, and the wapi Wi-Fi tool. The console is the LOG-UART at 1500000 8N1.

gpio

Minimal NSH with the GPIO driver and the gpio example enabled (no Wi-Fi). The board registers three pins from its pin table (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_gpio.c): an output at /dev/gpio0, an input at /dev/gpio1 and an interrupt pin at /dev/gpio2. Edit that table to match a board’s wiring. Exercise them with the example:

nsh> gpio -o 1 /dev/gpio0     # drive the output high
nsh> gpio /dev/gpio1          # read the input
nsh> gpio -w 1 /dev/gpio2     # wait for a falling-edge interrupt

Pins are encoded with the AMEBA_PA() / AMEBA_PB() helpers from arch/arm/src/common/ameba/ameba_gpio.h (port A/B, pin 0-31), matching the Ameba SDK PinName layout.

uart

Minimal NSH with the general-purpose UART driver and the serialrx / serialblaster examples enabled (no Wi-Fi). The LOG-UART owns the console and /dev/ttyS0, so the board registers UART0-2 from its table (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_uart.c) as /dev/ttyS1-3 at 115200 8N1. Edit that table – controller, TX/RX pads and baud – to match a board’s wiring. The TX/RX pads use the same AMEBA_PA() / AMEBA_PB() encoding as the GPIO table; the driver muxes them to the UART function and pulls RX high through the SDK ROM. Exercise a port with the examples (loop TX back to RX, or wire it to a host serial adapter):

nsh> serialblaster /dev/ttyS1 26   # stream a test pattern out /dev/ttyS1
nsh> serialrx      /dev/ttyS1 26   # receive and dump bytes from /dev/ttyS1

The line format can be changed at runtime through tcsetattr() (the config enables CONFIG_SERIAL_TERMIOS). UART3 is reserved for Bluetooth and is not exposed by the driver.

i2c

Minimal NSH with the I2C master driver and the i2ctool (system/i2c) enabled (no Wi-Fi). The board registers its I2C controllers from a table (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_i2c.c): I2C0 at /dev/i2c0 on PA10/PA9, I2C1 at /dev/i2c1 on PA4/PA3 and I2C2 at /dev/i2c2 on PB11/PB10 (SCL/SDA). Edit that table – controller and SCL/SDA pads – to match a board’s wiring; the pads use the same AMEBA_PA() / AMEBA_PB() encoding as the GPIO table and are muxed to the I2C function through the SDK ROM. Unlike the GPIO and UART crossbars, a pad reaches exactly one I2C controller, and pads the audio codec drives cannot be used. The I2C bus is open-drain, so fit external pull-ups on SCL/SDA. Probe a bus with the tool:

nsh> i2c dev -b 0 0x03 0x77     # scan /dev/i2c0 for devices

spi

Minimal NSH with the SPI master driver and the spi tool (system/spi) enabled (no Wi-Fi). The board registers two buses from its table (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_spi.c): SPI0 at /dev/spi0 with CLK/MOSI/MISO/CS on PB18/PB19/PB20/PB21 and SPI1 at /dev/spi1 on PA11/PA9/PA10/PA12. The pads use the same AMEBA_PA() / AMEBA_PB() encoding as the GPIO table and are muxed to the SPI function through the SDK ROM, while the chip-select is driven as a plain GPIO. As with I2C – and unlike the GPIO and UART crossbars – a pad reaches exactly one controller, so edit that table within each controller’s own set: PB18-PB21 for SPI0, PB25-PB28 or PA9-PA12 for SPI1. Pads the audio codec drives cannot be used. Exercise a bus with the tool:

nsh> spi exch -b 0 -x 4 deadbeef     # full-duplex transfer on /dev/spi0

pwm

Minimal NSH with the PWM driver and the pwm example (examples/pwm) enabled (no Wi-Fi). The board registers one timer at /dev/pwm0 (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_pwm.c): TIM8 drives six compare channels off one shared time base, so every channel shares one frequency and each carries its own duty cycle. The table routes the channels to PA7/PA9/PA10/PA4/PA5/PA6. Despite the chip having a single PINMUX_FUNCTION_PWM code, each pad is tied to one channel – the pin-mux table names a pad’s PWM function HS_PWM<n>, which is channel n + 1 – so an entry may only be cleared to AMEBA_PWM_PIN_NC or swapped for another pad carrying the same HS_PWM<n>; PB14-PB16 are the alternative for channels 1-3. Avoid PA14/PA13, which are SWD_CLK/SWD_DATA and stay muxed to the debug port unless the board calls Pinmux_Swdoff(). Set CONFIG_PWM_NCHANNELS to the number of channels used. Exercise it with the example:

nsh> pwm -d 25 -f 1000     # 1 kHz, 25% duty on /dev/pwm0

timer

Minimal NSH with the timer driver and the timer example (examples/timer) enabled (no Wi-Fi). The board registers two timers (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_timer.c): /dev/timer0 is TIM2 and /dev/timer1 is TIM3, both 32-bit LP basic timers clocked at 32.768 kHz, so a tick is ~30.5 us and a single timeout reaches ~36 hours. Neither has any board wiring. TIM0 and TIM1 are not exposed: the ROM claims TIM0 as the system timer behind DelayUs()/SYSTIMER_*, and the vendor HAL claims TIM1 as its application and UART-timeout timer. Exercise a timer with the example:

nsh> timer                 # 20 samples 0.1 s apart, 1 s timeout, on /dev/timer0

wdg

Minimal NSH with the watchdog driver and the wdog example (no Wi-Fi). The board registers the on-chip watchdog at /dev/watchdog0 (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_wdg.c): WDG4, the CA32 non-secure system watchdog. It has no board wiring (it is an internal timer) and, once enabled, cannot be stopped by software – the stop() operation instead arms the early-interrupt and refreshes the counter from its handler to inhibit the reset. Exercise it with the example, which opens the device, sets a timeout, and pings it:

nsh> wdog                  # run the watchdog example on /dev/watchdog0

adc

Minimal NSH with the ADC driver and the adc example (examples/adc) enabled (no Wi-Fi). The board registers one converter at /dev/adc0 (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_adc.c) listing CH2-CH5, which each ANIOC_TRIGGER samples in list order. The chip has ten channels; CH0-CH5 are external and bound to the fixed pads PA0-PA5 (the pin-mux table names them TOUCHn_ADCn), while the rest are internal and have no pad. PA0 and PA1 are not bonded out on the RTL8730EAM/EAH packages, so the table leaves CH0 and CH1 out. The pads reach the converter through the cap-touch function (PINMUX_FUNCTION_CAPTOUCH, function 18), shared with the cap-touch controller and, on PA2-PA5, the DMIC, so those functions cannot be used on the same pad. PA3/PA4 are also I2C1 pads and PA4/PA5 are UART1 or PWM pads: a config that registers one of those too must drop the clashing channel from the table. The input range is 0 to 3.3 V with 12-bit samples, reported as raw codes. Exercise it with the example:

nsh> adc -n 1     # sample CH2-CH5 once on /dev/adc0

rtc

Minimal NSH with the RTC driver and the alarm example (examples/alarm) enabled (no Wi-Fi). The board registers the on-chip RTC at /dev/rtc0 (see boards/arm/rtl8730e/rtl8730e_evb/src/rtl8730e_rtc.c) and the system time is seeded from it at boot. The RTC has no board wiring (it is an internal clock in the always-on domain). The hardware keeps only a year and a day-of-year, so the driver converts to and from calendar month/day in software. After a cold power-up the counter starts in 1900; the driver then seeds it with CONFIG_START_YEAR/MONTH/DAY, while a warm RTC that already holds a later date is left alone. The RTC is reset by CHIP_EN, power-on and system reset (which the board reset button triggers), but not by BOR, thermal, deep-sleep or watchdog resets. After a reset button press the registers therefore read back as zero (year 1900) when the driver starts and the clock is seeded again, whereas after a watchdog reset the time carries on. Exercise it with date and the alarm example:

nsh> date -s "Oct 28 12:00:00 2026"
nsh> date
nsh> alarm 5      # one-shot alarm on /dev/rtc0 firing in 5 seconds

Wi-Fi

Station (connect to an AP):

nsh> wapi mode  wlan0 2
nsh> wapi psk   wlan0 <password> 3
nsh> wapi essid wlan0 <ssid> 1
nsh> renew wlan0

SoftAP (become an access point, with a DHCP server for clients):

nsh> wapi mode   wlan0 3
nsh> wapi psk    wlan0 <password> 3
nsh> wapi essid  wlan0 <ssid> 1
nsh> dhcpd_start wlan0

Stop the SoftAP with wapi essid wlan0 <ssid> 0.

License Exceptions

This board depends on Realtek vendor code that is not part of NuttX and is subject to its own license:

  • The prebuilt Wi-Fi / Bluetooth firmware image and the Realtek ameba-rtos SDK libraries/headers linked into the image. See the SDK’s own license; the SDK is auto-fetched and is not redistributed in the NuttX tree.

  • The prebuilt ATF BL2 and BL32 binaries under prebuilt/ are provided by Realtek and are subject to the Realtek binary license included in the SDK.
