MPR121 Capacitive Keypad

What is the MPR121 Keypad The MPR Capacitive Keypad is a small keyboard with 12 keys, similar to a telephone keypad, however the keys are numered from 0 to 11.

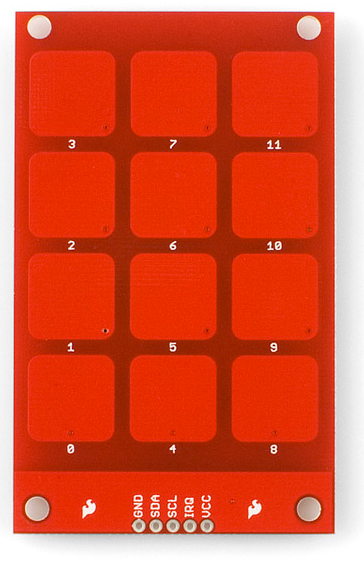

This is the picture of the MPR121 Capacitive Keypad:

MPR121 Capacitive Keypad

Purpose. The MPR121 driver provides a generic keypad implementation for this capacitive keypad. The MPR121 uses the I2C bus to setup and read the touched/released key and uses an IRQ pin (open drain) to indicate when a key is pressed/released or when some unnexpected issue happens (currently not used).

The driver also enables debounce, and emits keyboard events through the common keyboard upper-half. This makes the device available as a character driver (e.g., /dev/keypad0) using the standard keyboard interfaces.

Driver Overview. The MPR121 lower-half scans the matrix and calls keyboard_event() when it detects a press or release. The keyboard upper-half registers the character device at the requested devpath and stores events in a circular buffer. Applications read struct keyboard_event_s from the device or use the optional kbd-codec layer.

Board Support. To support the MPR121, a board must provide:

  1. IRQ Definition

    • Define the GPIO Input pin with pull-up enabled (since the IRQ pin is open-drain) to be used to detect the interrupts.

  2. Registration Hook

    • Define a struct xxx_mpr121config_s that will wrap the struct mpr121_config_s config as first member and the irq argument and ISR handler (xcpt_t isr). The config needs to have its .irq_attach and keymap initialized with the board IRQ ISR function and the key mapping array.

    • Implement board_mpr121_initialize(int devno, int busno) to call mpr121_register(&config, devpath). It needs to initialize the I2C Master port/channel that will be used to communicate with the MPR121 and an instance of that xxx_mpr121config_s structure.

    • Invoke the board hook during bring-up (for example, board_mpr121_initialize(0, 1) for /dev/keymap0 and i2c1).

Reference Implementation (STM32F4Discovery). The current reference is in boards/arm/stm32/common/src/stm32_mpr121.c:

  • Keymap: 4x3 keypad layout

  • Registration: board_mpr121_initialize() calls mpr121_register()

Data Path Summary.

  • Board calls board_mpr121_initialize(0, 1)

  • mpr121_register() initializes and configure the MPR121 chip and calls keyboard_register(&lower, devpath, buflen)

  • The upper-half registers the device node at devpath

  • Every time an interruption is generated on IRQ pin it will call the mpr121_worker() and it is calls keyboard_event() on press/release of keys.

  • Applications read events from the device node (/dev/keypad0).
