Microwindows

Microwindows is a lightweight windowing system for small- to medium-footprint embedded systems. It provides:

• GDI / Win32 API – a low-level C graphics library for direct framebuffer drawing, suitable for tiny single-threaded applications.

• mwin – a widget toolkit built on the Win32 API, supporting windows, menus, buttons, edit boxes, list boxes, scroll bars, progress bars, and timers.

• Nano-X / X11 API – an X11-compatible client/server window system, enabled with CONFIG_MICROWINDOWS_NANOX.

The NuttX integration includes the Microwindows core and GDI API. The optional mwin widget toolkit provides a Win32-style API and is enabled with CONFIG_MICROWINDOWS_MWIN=y. The Nano-X client library and server can also be built, giving access to the X11-style GrXXX API from multiple client applications.

Quick Start

Microwindows requires a framebuffer device (CONFIG_VIDEO_FB=y).

The build and run instructions for the supported configurations are documented on their board pages:

• NuttX Simulation (SIM) (sim:mw and sim:nanox)

• QEMU Intel64 (qemu-intel64:mw and qemu-intel64:nanox)

Nano-X (X11 API)

For the Nano-X client/server window system, the sim:nanox configuration boots directly into the nxterm terminal emulator:

cd nuttx
tools/configure.sh sim:nanox
make -j$(nproc)

This opens an X11-style terminal window running an NSH shell; typing nanoxcalc inside it starts the calculator demo.

For QEMU, use the qemu-intel64:nanox configuration instead:

cd nuttx
tools/configure.sh qemu-intel64:nanox
make -j$(nproc)

See QEMU Intel64 for the QEMU ISO creation and run instructions.

Available Configurations

To enable Microwindows, set CONFIG_GRAPHICS_MICROWINDOWS=y. The library is located at apps/graphics/microwindows.

Dependencies

All configurations require CONFIG_VIDEO_FB=y.

For qemu-intel64:mw and qemu-intel64:nanox, the following input-related options are required:

CONFIG_USBHOST=y, CONFIG_USBHOST_HIDKBD=y, CONFIG_USBHOST_HIDMOUSE=y, CONFIG_USBHOST_XHCI_PCI=y, CONFIG_USBHOST_WAITER=y, CONFIG_MICROWINDOWS_KBD_EVENT=y, CONFIG_MICROWINDOWS_KBD_EVENT_PATH="/dev/kbda"

The USB HID keyboard exposes keyboard_event_s records at /dev/kbda; it is not the raw byte-stream keyboard driver.

For sim:mw and sim:nanox the following input options are required:

CONFIG_INPUT=y, CONFIG_SIM_KEYBOARD=y, CONFIG_SIM_TOUCHSCREEN=y

Keyboard Drivers

choice prompt: "Keyboard driver"

MICROWINDOWS_KBD_EVENT

Reads keyboard_event_s events from /dev/kbd (path configurable). Supports key press/release tracking and modifier keys (Shift, Ctrl, Alt).

Device path config: MICROWINDOWS_KBD_EVENT_PATH (default /dev/kbd).

MICROWINDOWS_KBD_RAW

Reads raw byte stream from /dev/kbda (path configurable). Decodes escape sequences via the kbd_codec library. Requires LIBC_KBDCODEC=y. Suitable for USB HID keyboards.

Device path config: MICROWINDOWS_KBD_RAW_PATH (default /dev/kbda).

MICROWINDOWS_KBD_NONE

No keyboard driver is compiled. Microwindows uses a null driver that never produces input. Suitable for display-only applications.

MICROWINDOWS_KBD_CUSTOM

No built-in keyboard driver is compiled. The application or BSP must provide its own kbddev symbol and KBDDEVICE implementation, and add the source file to the build (e.g. via CSRCS in its Makefile).

Mouse / Touchscreen Drivers

choice prompt: "Mouse/touchscreen driver"

MICROWINDOWS_MOUSE_RELATIVE

Reads mouse_report_s events from /dev/mouse0 (path configurable). Supports three buttons and scroll wheel.

Device path config: MICROWINDOWS_MOUSE_PATH (default /dev/mouse0).

MICROWINDOWS_MOUSE_TS

Reads touch_sample_s events from /dev/input0 (path configurable). Supports absolute positioning.

Device path config: MICROWINDOWS_TS_PATH (default /dev/input0).

MICROWINDOWS_MOUSE_NONE

No pointing device driver is compiled. Microwindows uses a null driver that hides the cursor and produces no input.

MICROWINDOWS_MOUSE_CUSTOM

No built-in pointing device driver is compiled. The application or BSP must provide its own mousedev symbol and MOUSEDEVICE implementation, and add the source file to the build.

Framebuffer

MICROWINDOWS_FB_PATH

Path to the NuttX framebuffer device. Default /dev/fb0.

Nano-X Client/Server Support

Enable the Nano-X (X11 API) client/server window system with CONFIG_MICROWINDOWS_NANOX=y. It builds the Nano-X server core and the Nano-X client library from the bundled Microwindows tree.

MICROWINDOWS_NANOX

Build the Nano-X server core and client library. Applications can start the server as a separate task; client applications connect to it through a local stream socket and use the X11-like API (GrXXX calls). In this network mode, it requires CONFIG_NET=y, CONFIG_NET_LOCAL=y and CONFIG_NET_LOCAL_STREAM=y. The NuttX build enables NX_PER_CLIENT_DATA and stores each client’s state in POSIX thread-local storage, so several client tasks can run at the same time in a flat build.

MICROWINDOWS_NANOX_NONETWORK

Build the Nano-X client library and server in the linked-in (NONETWORK) mode: client applications are linked directly with the server and run in the same task, so no network stack or socket is required and the memory footprint is minimal. Only a single client application can be active at a time.

MICROWINDOWS_NANOX_NANOWM

Link the built-in window manager (wm*.c, nxdraw.c) into the Nano-X server, providing window decorations (title bar, 3D frame), cascaded placement, move/resize and focus handling.

Microwindows Demo Application

Enable with CONFIG_EXAMPLES_MICROWINDOWS=y. The example is located at apps/examples/microwindows.

It ports mwdemo.c from upstream, which exercises the mwin widget toolkit (buttons, edit boxes, list boxes, scroll bars, progress bars). The demo uses GdOpenScreen() to initialise the framebuffer and enters a Win32-style message loop with GetMessage() / DispatchMessage().

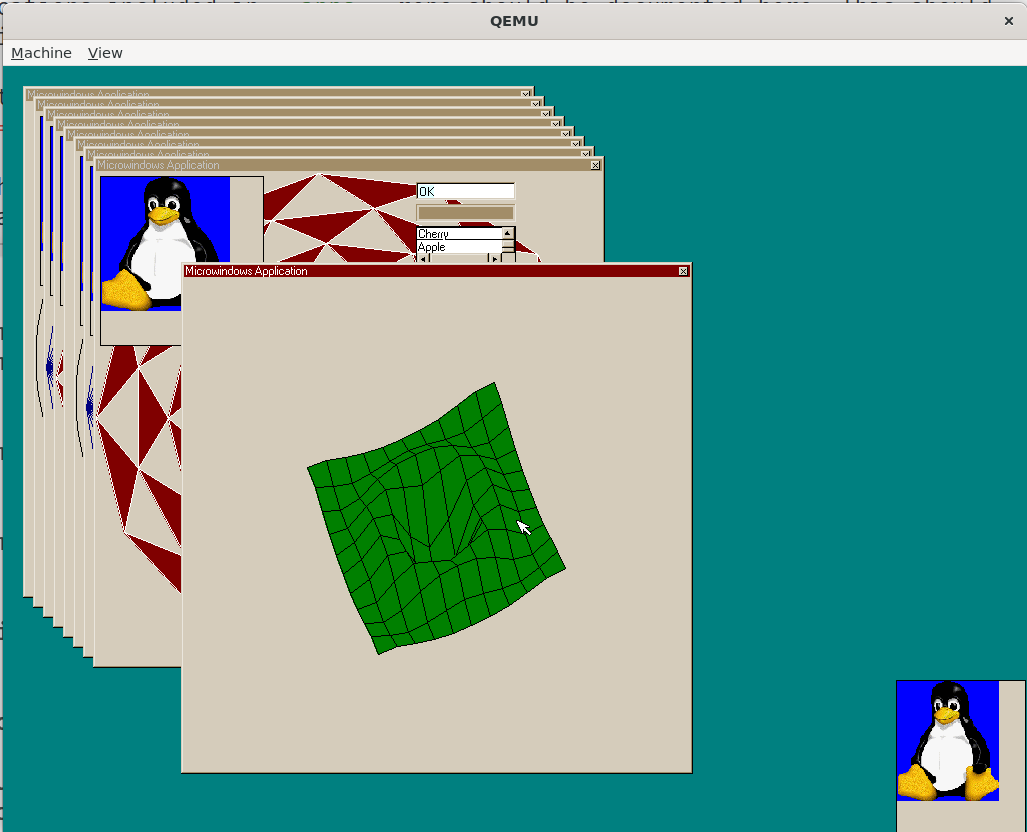

The mwdemo application running on the NuttX simulator (sim:mw).

EXAMPLES_MICROWINDOWS_PROGNAME

Program name for the NSH ELF install (default "mwexample").

EXAMPLES_MICROWINDOWS_PRIORITY

Task priority (default 100). For setups where input threads have a lower priority, consider lowering this value.

Warning

On qemu-intel64:mw the default USB HID mouse thread priority (CONFIG_HIDMOUSE_DEFPRIO, default 50) is lower than the demo application priority (100). When dragging a window, Microwindows’ MwSelect switches to polling (select with timeout 0), which can starve the USB input thread and make the whole system appear frozen. Raise CONFIG_HIDMOUSE_DEFPRIO (e.g. to 120), lower EXAMPLES_MICROWINDOWS_PRIORITY, or fix the drag loop to use a small non-zero timeout.

EXAMPLES_MICROWINDOWS_STACKSIZE

Stack size in bytes (default 32768).

Nano-X Terminal Emulator Example

Enable with CONFIG_EXAMPLES_NANOXTERM=y. The example is located at apps/examples/nanoxterm.

It is a port of the nxterm demo from upstream Microwindows. It starts the Nano-X server as a separate task, connects to it and creates a terminal window backed by a pseudo terminal. The configured NSH program is started with posix_spawn(). Requires CONFIG_PSEUDOTERM=y, CONFIG_LIBC_EXECFUNCS=y and CONFIG_SYSTEM_NSH=y.

It can be used as the init entry point: setting CONFIG_INIT_ENTRYPOINT="nanoxterm_main" boots directly into the terminal window, e.g. the sim:nanox configuration.

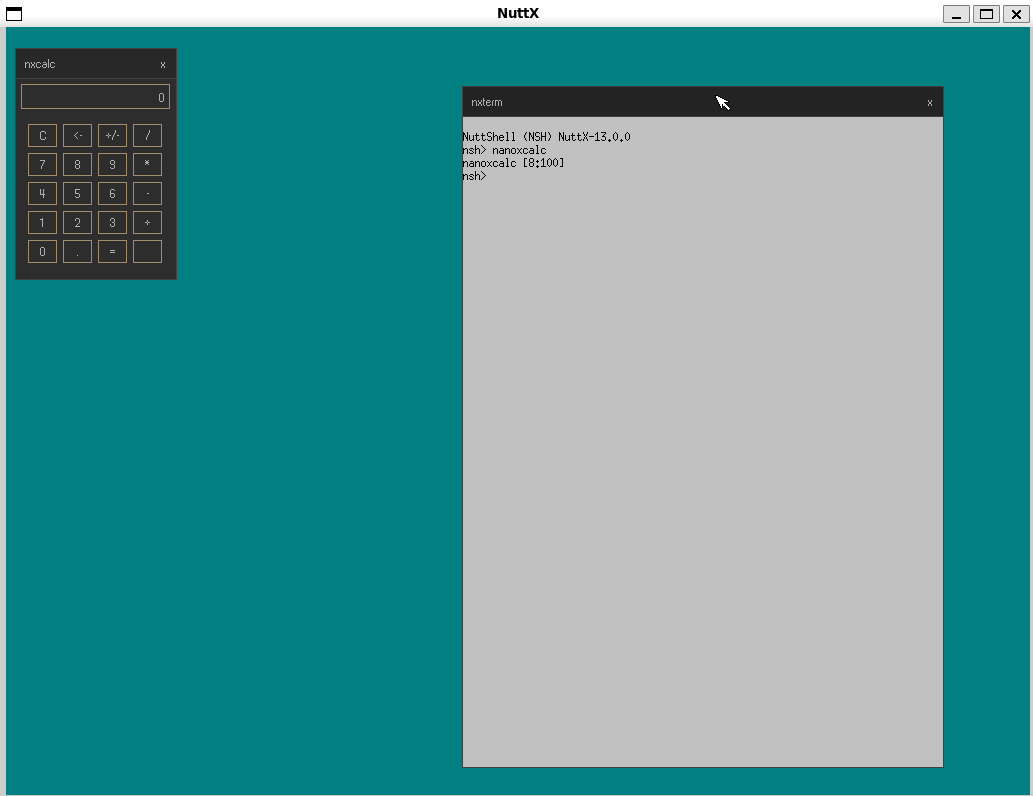

The nxterm terminal emulator running on the NuttX simulator (sim:nanox), with an NSH shell.

In the NONETWORK mode (MICROWINDOWS_NANOX_NONETWORK) the server task is not started, since the application runs the server inside main().

EXAMPLES_NANOXTERM_PROGNAME

Program name for the NSH ELF install (default "nanoxterm").

EXAMPLES_NANOXTERM_PRIORITY

Task priority (default 100).

EXAMPLES_NANOXTERM_STACKSIZE

Stack size in bytes (default 16384).

Nano-X Calculator Example

Enable with CONFIG_EXAMPLES_NANOXCALC=y. The example is located at apps/examples/nanoxcalc.

It is a port of the nxcalc demo from upstream Microwindows. It connects to the running Nano-X server and shows a calculator keypad operated by the mouse or keyboard. Requires CONFIG_LIBC_FLOATINGPOINT=y. To invoke it as an NSH command, also enable CONFIG_NSH_BUILTIN_APPS=y; both Nano-X defconfigs enable this option.

EXAMPLES_NANOXCALC_PROGNAME

Program name for the NSH ELF install (default "nanoxcalc").

EXAMPLES_NANOXCALC_PRIORITY

Task priority (default 100).

EXAMPLES_NANOXCALC_STACKSIZE

Stack size in bytes (default 16384).

Porting to New Hardware

The Microwindows source is downloaded at build time from the upstream repository. NuttX-specific screen, keyboard, and mouse drivers live in upstream src/drivers/ (scr_nuttx.c, kbd_nuttx_event.c, kbd_nuttx_raw.c, mou_nuttx_mouse.c, mou_nuttx_ts.c).

A board with a working framebuffer and input devices needs:

1. A defconfig enabling CONFIG_VIDEO_FB, GRAPHICS_MICROWINDOWS, and the appropriate keyboard/mouse driver choice.

2. For framebuffer-only (display-only) use, select KBD_NONE and MOUSE_NONE.

If the board’s input hardware does not fit the built-in drivers, select KBD_CUSTOM and/or MOUSE_CUSTOM and provide your own driver source.

Resources

• Microwindows upstream repository

• NuttX Discussion Issue #18566
