ST STM32H7S8-DK

Tags: chip:stm32 chip:stm32h7 chip:stm32h7s3

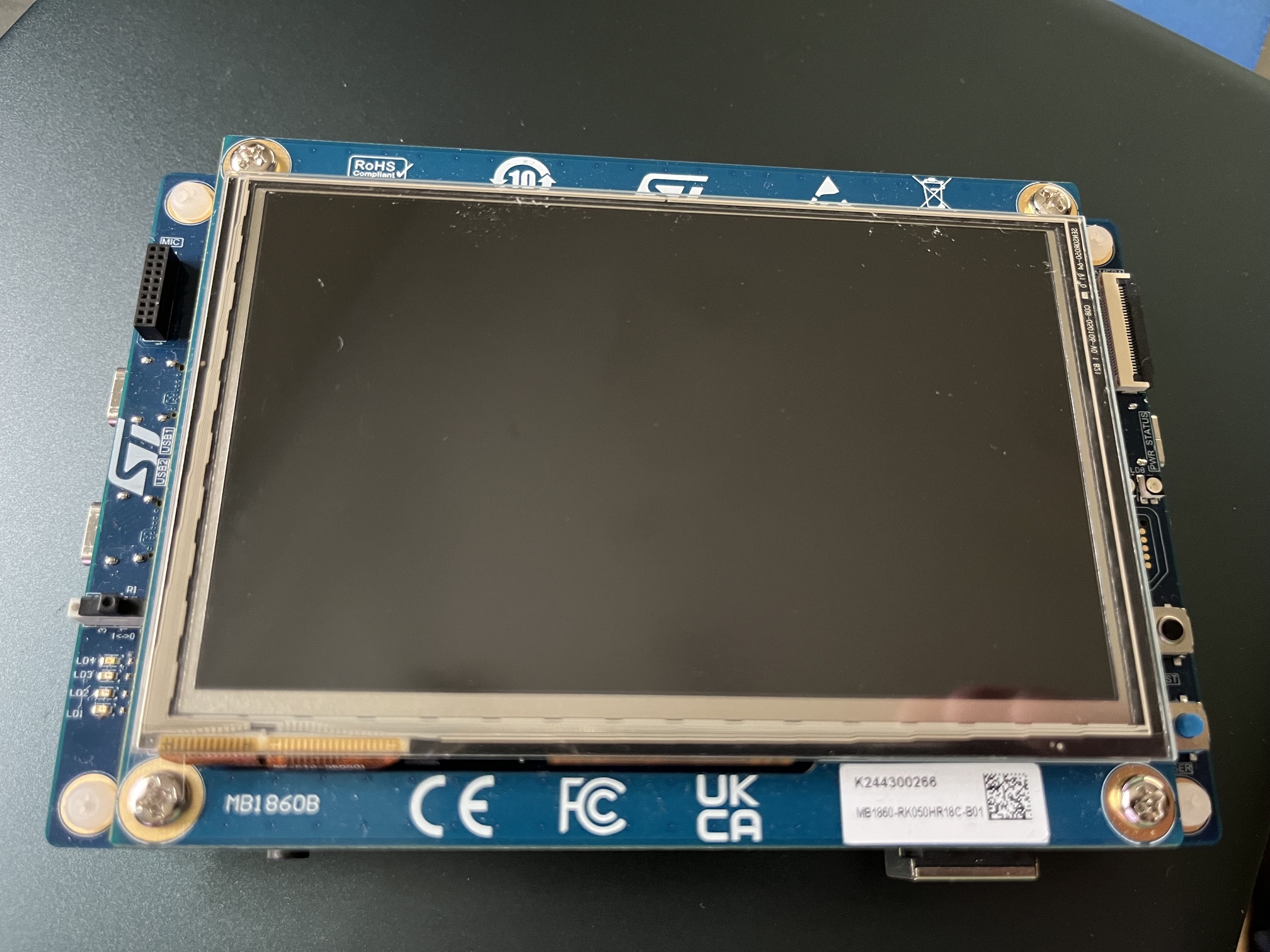

STM32H7S8-DK Front

STM32H8S8-DK Front

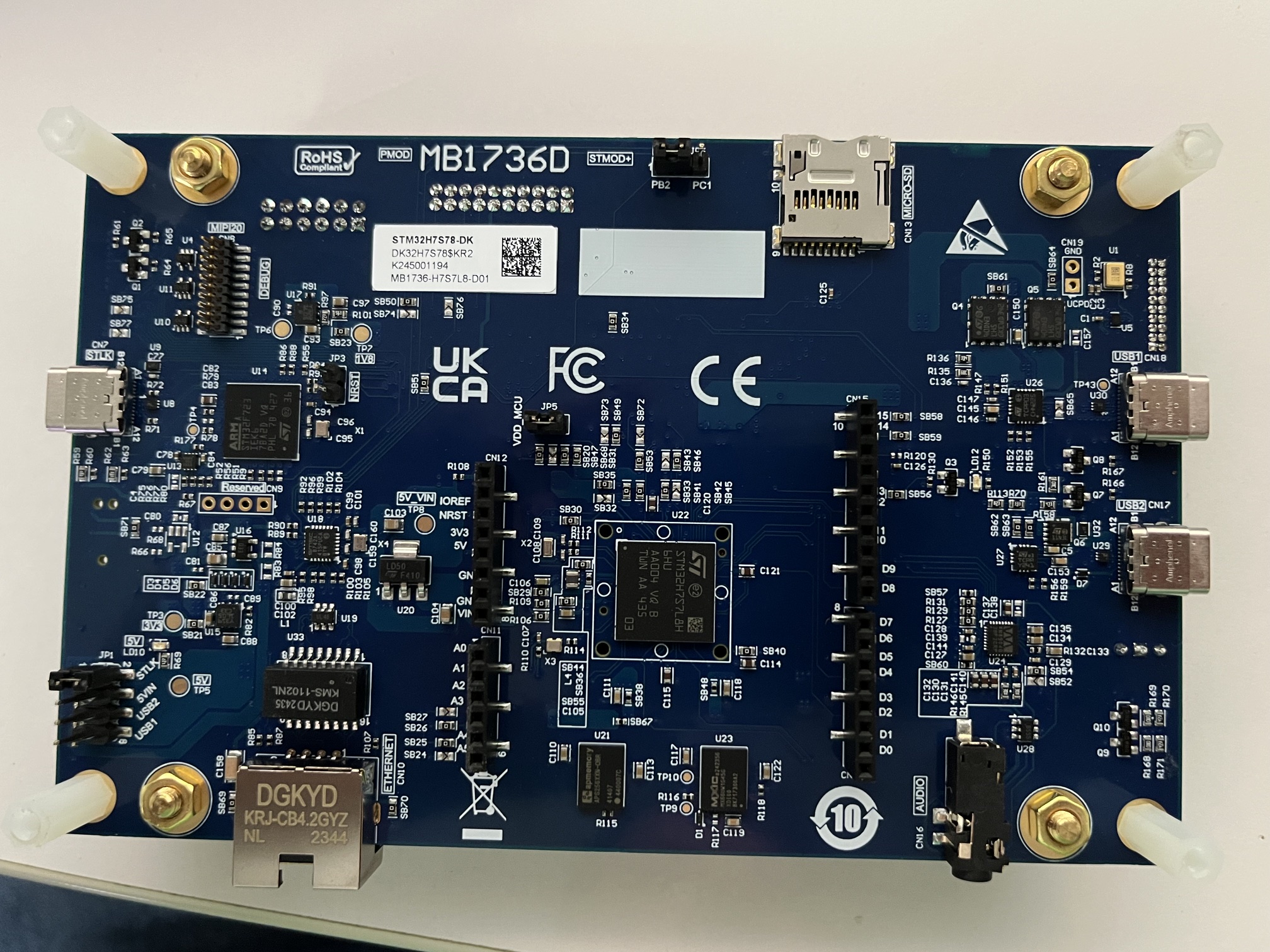

STM32H7S8-DK Back

STM32H8S8-DK Back

This page describes the NuttX port for the STMicro SMT32H7S8-DK Discovery kit. The board is based on the 600 MHz STM32H7S3L8 Cortex-M7 microcontroller.

Flashing internal NSH image

Note

nsh image is restricted in size to fit in and execute from internal 64 KB flash.

Build the internal nsh image:

cmake -B build/nsh -DBOARD_CONFIG=stm32h7s8-dk:nsh -GNinja
cmake --build build/nsh

Install STM32CubeProgrammer and set CUBE_PROGRAMMER to the path of its command-line executable.:

CUBE_PROGRAMMER=/path/to/STM32_Programmer_CLI

Program and verify the internal image, then reset the board:

"$CUBE_PROGRAMMER" --connect port=SWD reset=HWrst \
  --download build/nsh/nuttx.bin 0x08000000 --verify --rst

The internal nsh image presents a shell on the ST-link console on startup.

XIP Boot

The STM32H7S3L8 has 64 KB of internal flash. The board also carries a 32 MB MX25UW25645G NOR flash on XSPI2, mapped at 0x70000000. Running NuttX from the external flash uses two images:

  • boot-xip runs from internal flash at 0x08000000.

  • nsh-xip executes in place from XSPI2 flash at 0x70000000.

The bootloader configures the MX25UW25645G in octal STR memory-mapped mode, validates the initial stack pointer and reset vector, and starts the external image. Image management, rollback, integrity checking, and authentication are not currently provided.

Flashing bootloader and external image

Note

The XSPI2_HSLV option byte must be set to 1 before using the external flash. The option byte setting is persistent.

Build the external image:

cmake -B build/nsh-xip -DBOARD_CONFIG=nucleo-h7s3l8:nsh-xip -GNinja
cmake --build build/nsh-xip

Build the internal bootloader:

cmake -B build/boot-xip -DBOARD_CONFIG=nucleo-h7s3l8:boot-xip -GNinja
cmake --build build/boot-xip

Install STM32CubeProgrammer and set CUBE_PROGRAMMER to the path of its command-line executable. The external loader is supplied by the STM32CubeProgrammer installation:

CUBE_PROGRAMMER=/path/to/STM32_Programmer_CLI
EXTERNAL_LOADER="$(dirname "$CUBE_PROGRAMMER")/ExternalLoader/MX66UW1G45G_STM32H7S78-DK.stldr"

Erase the external flash, then program and verify the XIP image:

"$CUBE_PROGRAMMER" --connect port=SWD mode=Normal --erase all \
  -el "$EXTERNAL_LOADER"
"$CUBE_PROGRAMMER" --connect port=SWD mode=Normal \
  --download build/nsh-xip/nuttx.bin 0x70000000 --verify \
  --skipErase \
  -el "$EXTERNAL_LOADER"

Program and verify the internal bootloader, then reset the board:

"$CUBE_PROGRAMMER" --connect port=SWD reset=HWrst \
  --download build/boot-xip/nuttx.bin 0x08000000 --verify --rst

Configurations

Each configuration is maintained in a subdirectory of configs and can be selected as follows:

tools/configure.sh stm32h7s8-dk:<subdir>

Where <subdir> is one of the following:

nsh

Provides a basic NuttShell configuration in internal flash and includes support for on-board LEDs and user button. The default console is the ST-LINK virtual COM port on USART4.

nsh-xip

Provides NuttShell, common diagnostic commands, and ostest. The image is linked for execution from XSPI2 flash at 0x70000000 and requires an XIP bootloader in internal flash.

jumbo-xip

Much as nsh-xip, but adds Ethernet networking. The IP address is obtained by DHCP.

Note

jumbo-xip enables CONFIG_STM32_ETH_GPIO_MDIO to communicate via GPIO pins PB2 and PA2 with LAN8742A Ethernet transceiver on the board, and requires jumper JP6 to be in its default setting. If JP6 is in alternate position, CONFIG_STM32_ETH_GPIO_MDIO must be disabled.

boot-xip

Provides the internal-flash NuttX bootloader used to start the nsh-xip or jumbo-xip image.
