devebox-stm32h743

Tags: chip:stm32 chip:stm32h7 chip:stm32h743

NuttX port for the DevEbox STM32H743 board.

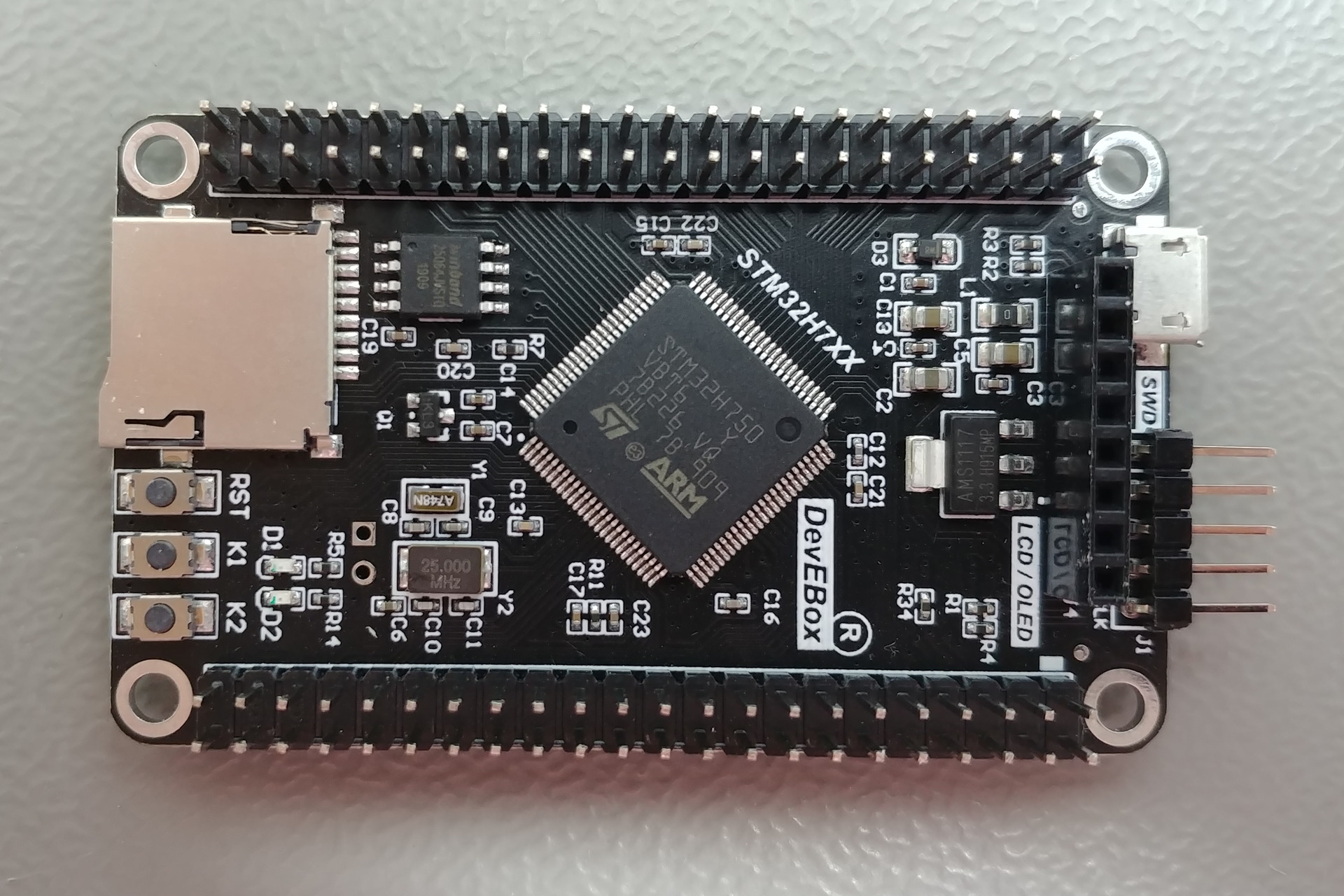

../../../../../_images/devebox-stm32h743-top.jpg

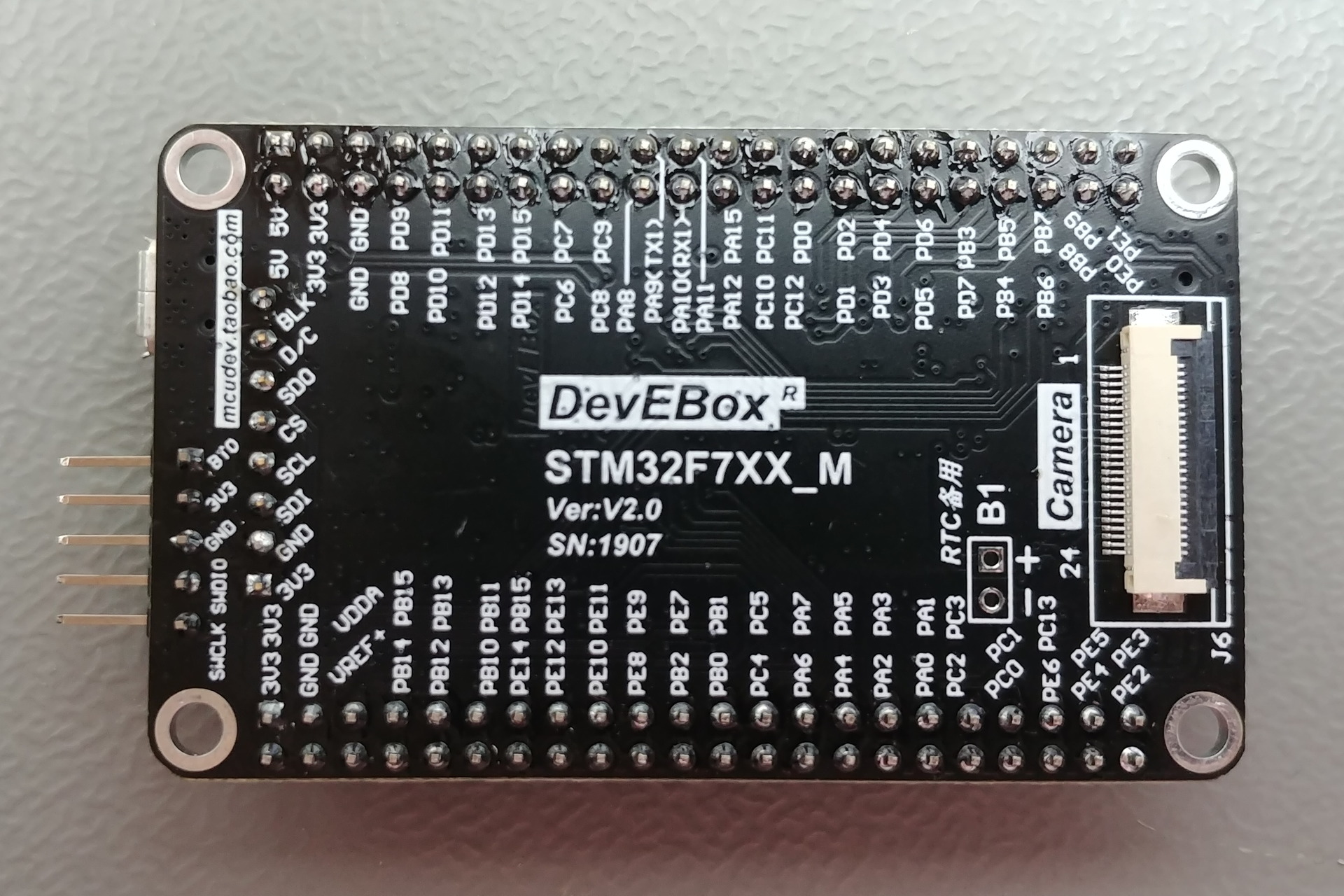

../../../../../_images/devebox-stm32h743-bottom.jpg

Board information

The DevEbox STM32H743 board is developed based on the STM32H743VI microcontroller.

Board information: https://stm32-base.org/boards/STM32H743VIT6-STM32H7XX-M

The board features:

  • USB-C power supply

  • SWD connector

  • Crystal for HS 25MHz

  • Crystal for RTC 32.768KHz

  • 1 user LED (PA1)

  • 2 user buttons (PE3, PC5)

  • 1 MicroSD connector supporting 1 or 4-bit bus (SDMMC1)

  • 1 USB 2.0 OTG FS

  • 1 QSPI Flash W25Q64 (8MB)

Serial Console

The board uses USART1 for the serial debug console.

USART1

PINS

TX

PA9

RX

PA10

Note: PA10 is also used as OTGFS_ID. When USB is enabled, CONFIG_OTG_ID_GPIO_DISABLE=y must be set to avoid a pin conflict.

LED

The board has one software-controllable LED on PA1 (active low).

Board buttons

The board has two buttons with active-low logic:

ID

GPIO

K1

PE3

K2

PC5

SDMMC

The board has one microSD slot connected via SDMMC1.

SDMMC1

PINS

SDMMC_D0

PC8

SDMMC_D1

PC9

SDMMC_D2

PC10

SDMMC_D3

PC11

SDMMC_CK

PC12

SDMMC_CMD

PD2

GPIO

PINS

SDCARD_DETECT

PD4

QSPI Flash

The board has a W25Q64 (8MB) QSPI NOR Flash.

QSPI

PINS

BK1_CS

PB6

BK1_IO0

PD11

BK1_IO1

PD12

BK1_IO2

PE2

BK1_IO3

PD13

CLK

PB2

USB OTG FS

OTG_FS

PINS

DM

PA11

DP

PA12

ID

PA10

Flashing

The board can be flashed via the SWD connector using a compatible programmer such as J-Link, ST-Link, or other SWD probe.

SWD

Connect the SWD programmer as follows:

SWD Programmer

DevEbox

SWDIO

DIO

GND

GND

SWCLK

CLK

3.3V

3V3

J-Link example:

JLinkExe -autoconnect 1 -device STM32H743VI -if SWD -speed 4000 \
  -CommanderScript flash.jlink

With flash.jlink:

reset
halt
loadfile nuttx.bin 0x08000000
reset
go
exit

Configurations

Each devebox-stm32h743 configuration is maintained in a sub-directory and can be selected as follows:

./tools/configure.sh devebox-stm32h743:<subdir>

Where <subdir> is one of the following:

nsh

Configures the NuttShell (nsh) with a serial console on USART1 (PA9/PA10). Minimal configuration suitable for basic testing.

nsh+debug

nsh configuration with debug features enabled (assertions, LEDs, stack checking, RAMLOG). Syslog output goes to /dev/ttyRAM via RAMLOG.

full

All-in-one configuration enabling all board features:

  • SD card (/dev/mmcsd0)

  • USB CDC ACM (/dev/ttyACM0)

  • W25Q64 QSPI Flash NXFFS (/w25)

  • Buttons (/dev/buttons)

  • RAMLOG (/dev/ttyRAM)

  • GPIO helper (/dev/gpio*)
