ST STM32H573I-DK

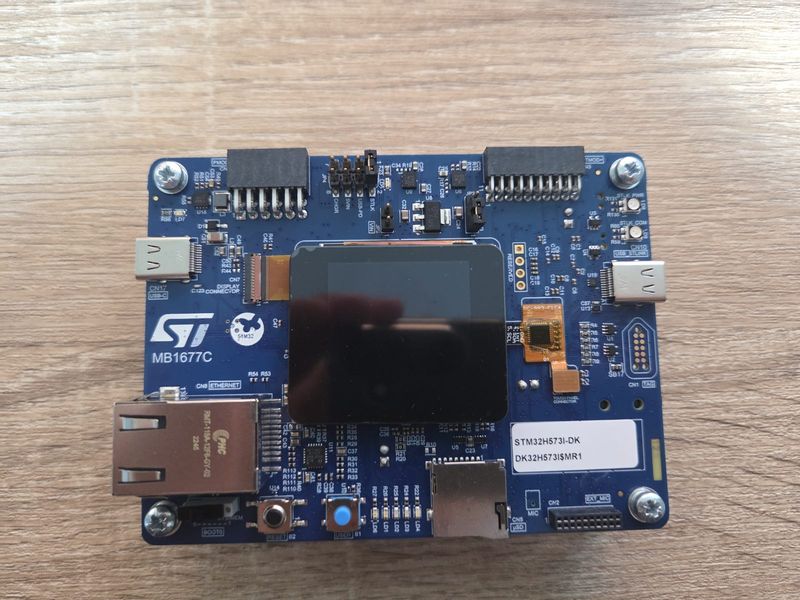

STM32H573I-DK Front

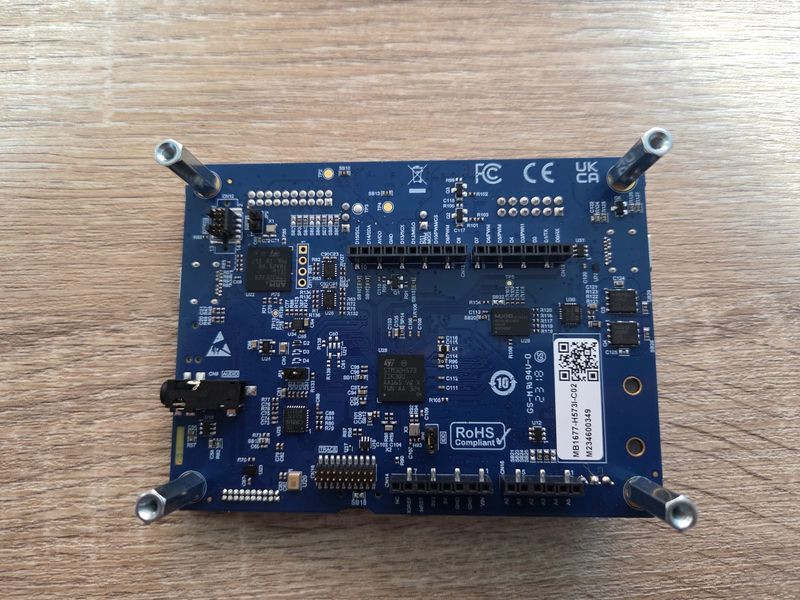

STM32H573I-DK Back
Board Information
The STM32H573I-DK Discovery board features the STM32H573II MCU, a 250 MHz Cortex-M33 with 2 MiB of flash memory and 640 KiB of SRAM.
Serial Console
The console uses USART1 (PA9 TX, PA10 RX) through the ST-LINK virtual COM port at 115200 baud, 8N1, with no flow control.
Flashing
Requires TrustZone disabled (TZEN=0xC3) and NSBOOTADD=0x80000:
STM32_Programmer_CLI -c port=SWD mode=UR -w nuttx.bin 0x08000000 -v -rst
Configurations
nsh
Configures the NuttShell (NSH) with a serial console on USART1.
jumbo
Enables additional build and runtime coverage with OS tests, user LEDs,
buttons, C++, libm, tmpfs, work queues and scheduler monitoring.
Run ostest, leds or buttons from the NSH prompt.
