GD-xD-W515-EVAL

Tags: arch:arm chip:gd32w51x vendor:gigadevice

The GigaDevice GD-xD-W515-EVAL is an “all-in-one” evaluation kit for smart locks and portable HMI devices, built around the GD32W515PIQ6 (Cortex-M33, 2 MB flash, 448 KB SRAM). It is made of a main board, a fingerprint board and an LCD board.

../../../../../_images/gd-xd-w515-eval.jpg

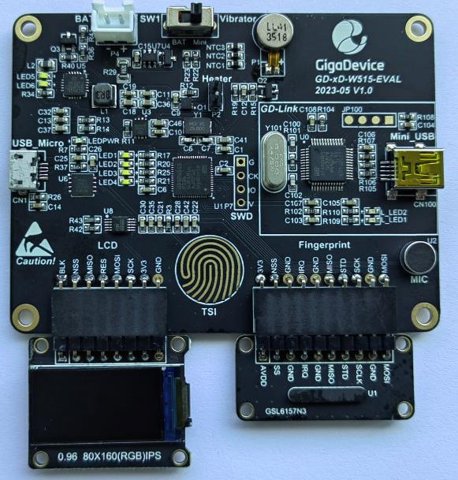

The GD-xD-W515-EVAL with its LCD and fingerprint boards (photo: CNX Software).

Features

  • GD32W515PIQ6 MCU, 25 MHz crystal, no 32 kHz crystal

  • 0.96” 160x80 IPS LCD (ST7735S, SPI) with a switched backlight

  • GSL6157 capacitive fingerprint sensor (SPI)

  • Capacitive touch key (TSI), vibration motor, heater coil, microphone, four LEDs

  • GD25Q128E 16 MB QSPI NOR flash (U6)

  • GD30BC2416 battery charger, GD30LD1002 LDO, LiPo connector

  • On-board GD-Link (CMSIS-DAP) on the mini-USB connector

  • CH340E USB-serial bridge on the micro-USB connector

The integrated Wi-Fi radio cannot be used on this board: the vendor radio libraries only support 26 MHz and 40 MHz crystals.

Pin mapping

The pins below follow the board schematic (GD-xD-W515-EVAL V1.0, GigaDevice, 2023-05).

Function

Pins

Notes

Console

PB10 (TX), PB11 (RX), AF7

USART2, to the CH340E

LCD (SPI0)

PA11 (SCK), PA9 (MOSI), AF0

Write only

LCD control

PA10 (D/C), PB13 (CS), PC6 (RESET)

LCD backlight

PC14 (active high)

On with the display

Motor

PA0, TIMER1_CH0 (AF1)

/dev/pwm0 channel 1

LEDs

PC5, PC4, PB0, PB1

LED1..LED4, active high

I2C0

PB15 (SCL, AF4), PA8 (SDA, AF5)

GD30BC2416 charger

Touch key

PB12 (sampling), PB14 (channel)

TSI, AF4, /dev/buttons

Heater coil

PB7 (COIL_EN, active low)

/dev/gpio0 (output)

Fingerprint

PC7 (SCK), PB6 (MISO), PB9 (MOSI)

SPI1, AF5 (no driver yet)

Fingerprint

PB8 (CS), PB5 (SHUTDOWN)

Outputs

Fingerprint

PA12 (IRQ)

/dev/gpio2 (interrupt)

USB detect

PC1 (micro-USB VBUS / 2)

/dev/gpio1 (interrupt)

Charger IRQ

PB2

GD30BC2416 driver (*)

Charger enable

PC3 (CHRG_EN, active high)

Held high

Analog inputs

PA1, PA2, PA3, PC2

ADC channels 1/2/3/6 (*)

GD-Link VBUS

PC0 (mini-USB VBUS / 2)

ADC channel 4 (unused)

Microphone

PA15 (MIC_OUT)

Digital input

QSPI flash

PA4 (SCK), PA5 (CS)

GD25Q128E, AF3

QSPI flash

PA6, PA7, PB3, PB4

IO0..IO3, AF3

(*) The analog inputs are the NTC thermistors of the heater coil (PA1), of the battery (PA2) and of the USB connector (PA3), each a 10 kOhm NTC with a 10 kOhm pull-up to 3.3 V, and the battery current (PC2): an INA181A1 (gain 20) on a 20 mOhm shunt with a 1.8 V offset, so I = (V - 1.8) / 0.4 A, negative while the battery charges. The battery voltage is only measured by the charger. PB2 is /dev/gpio3 when the charger driver is disabled.

Fingerprint sensor

The GSL6157 sensor (160x36 pixels, Silead / GigaDevice) is on SPI1. Its module is wired as the reference circuit of the GSL6157N2 datasheet, with its I/O on the 1.8 V regulator of the sensor. There is no driver for it yet: the board keeps the sensor deselected and out of reset, and its IRQ output is /dev/gpio2.

Touch key

The “TSI” key is an electrode on PB14 (TSI group 2, pin 3), with the sampling capacitor on PB12 (pin 1). The gd32w51x_tsi driver runs one charge transfer sequence at a time; the board samples the key every 50 ms on the work queue and exposes it as button 0 of /dev/buttons (CONFIG_INPUT_BUTTONS_LOWER). The count is about 4470 cycles untouched and drops under 1200 with a finger: the key is touched below 70 % of the reference measured at boot (do not touch it then) and released above 85 %.

Battery charger

The GD30BC2416 charger is on I2C0. It has no register address byte: each 16-bit register answers on its own slave address (0x40 + register), so i2ctool cannot read it. The gd30bc2416 driver registers it as /dev/batt0 (battery_charger interface):

  • BATIOC_STATE, BATIOC_HEALTH and BATIOC_ONLINE from the status and fault registers.

  • BATIOC_GET_VOLTAGE: the battery voltage, in mV, from the charger ADC.

  • BATIOC_VOLTAGE: the charge voltage (4100, 4200, 4300, 4350 or 4400 mV).

  • BATIOC_CURRENT: 100/75/50/25 % of the ISET current, 333 mA on this board (R34 = 30 kOhm).

  • BATIOC_OPERATE: BATIO_OPRTN_CHARGE and BATIO_OPRTN_BOOST.

The charger powers up with the charge disabled, and returns to its reset configuration when the USB power is removed. The driver keeps the requested charge voltage, charge current and enables, and writes them again on the IRQ of the charger (PB2, pulsed on each event) and before each status read; the IRQ also wakes up poll() on /dev/batt0. The start of the charge raises no IRQ, so after an IRQ with the USB power present the driver polls the state for up to 2 s. Enable CONFIG_GD30BC2416_CHARGE to start the charge at boot. PC1 (/dev/gpio1) follows the USB power, and the board holds CHRG_EN (PC3) high.

Without a battery, powered by the USB only, the charger answers on I2C in time windows (about 300 ms every 880 ms): the driver retries a NACKed transfer for up to 1 s.

Warning

The charger is for a single Li-ion/LiPo cell. Do not connect a primary cell (Li-SOCl2, for instance) with the charge enabled.

TrustZone and flashing

The board ships with TrustZone enabled (TZEN option bit). NuttX runs in secure state (see the GD32W51x chip documentation), which requires the flash pages that hold the image to be marked secure. The factory setting only marks the first 32 KB (FMC_SECMCFG0 = 0x00070000). Mark the whole flash once, with OpenOCD and the GD-Link (this does not erase anything):

openocd -f target/openocd_gdlink_gd32w51x.cfg -c init -c "reset halt" \
  -c "mww 0x50022004 0x45670123" -c "mww 0x50022004 0xCDEF89AB" \
  -c "mww 0x50022024 0x45670123" -c "mww 0x50022024 0xCDEF89AB" \
  -c "mww 0x50022008 0x45670123" -c "mww 0x50022008 0xCDEF89AB" \
  -c "mww 0x50022048 0x01FF0000" -c "mmw 0x50022010 0x4200 0" \
  -c "sleep 200" -c "mmw 0x50022010 0x8000 0" -c shutdown

The last write reloads the option bytes and resets the chip. Writing back 0x00070000 restores the factory setting.

The OpenOCD flash driver of the GigaDevice fork registers the flash at its secure alias when TrustZone is enabled, so program the image there:

openocd -f target/openocd_gdlink_gd32w51x.cfg -c init -c "reset halt" \
  -c "program nuttx.bin 0x0c000000 verify" -c "reset run" -c shutdown

Do not use the load command of gdb: it writes the ELF image at 0x08000000, where the flash driver has no bank, and leaves an inconsistent image. Program the binary as above, then attach gdb without load.

Note

With TrustZone enabled, the secure debug port reads the non-secure flash pages as zero. Back up the factory firmware only after all the pages are marked secure.

Serial console

The console is USART2 at 115200 8N1, on the micro-USB connector (CH340E).

Configurations

Each configuration is selected with:

$ ./tools/configure.sh gd-xd-w515-eval:<subdir>

nsh

Basic NuttShell configuration on the serial console:

nsh> uname -a
NuttX 13.1.0 b2dfe4f7e9 Oct 19 2026 08:22:30 arm gd-xd-w515-eval
nsh> free
      total       used       free    maxused    maxfree  nused  nfree name
     448344       6760     441584       7520     441192     22      2 Umem

ostest

ostest from apps/testing. It passes on the hardware:

nsh> ostest
...
user_main: Exiting
ostest_main: Exiting with status 0

periph

Board peripherals: /dev/userleds and the leds example, /dev/i2c0 and i2ctool, /dev/adc0 (adc example, software trigger), /dev/pwm0 (vibration motor), the LCD as /dev/fb0 (fb example, SPI with DMA), /dev/random, the watchdogs (/dev/watchdog0 FWDGT, /dev/watchdog1 WWDGT, wdog example), the RTC (date, kept across a reset), /dev/gpio0 and /dev/gpio1//dev/gpio2 (gpio example), the battery charger as /dev/batt0 and the touch key as /dev/buttons (buttons example).

The IPS panel needs the color inversion and the BGR order of the ST7735S (CONFIG_LCD_ST7735_INVCOLOR and CONFIG_LCD_ST7735_BGR), and a 26/1 pixel offset (CONFIG_LCD_ST7735_XOFFSET/YOFFSET) for its 80x160 window.

Blink the four LEDs (PC5, PC4, PB0, PB1) in sequence:

nsh> leds
leds_main: Starting the led_daemon
leds_main: led_daemon started
led_daemon (pid# 6): Running
led_daemon: Opening /dev/userleds
led_daemon: Supported LEDs 0x0f
led_daemon: LED set 0x01
led_daemon: LED set 0x02

Run the vibration motor for 2 seconds:

nsh> pwm -f 200 -d 50 -t 2
pwm_main: starting output with frequency: 200 channel: 1 duty: 00007fff channel: 2 duty: 00007fff
pwm_main: stopping output

Read the analog inputs:

nsh> adc -n 1
adc_main: g_adcstate.count: 1
adc_main: Hardware initialized. Opening the ADC device: /dev/adc0
Sample:
1: channel: 1 value: 1842

Touch the “TSI” key while the buttons example runs:

nsh> buttons
button_daemon: Supported BUTTONs 0x01
Sample = 1
Sample = 0

littlefs

Two LittleFS volumes, formatted on the first boot and kept across a reboot:

  • /data: the last 128 KB of the internal flash (/dev/gd32flash).

  • /flash: the 16 MB QSPI NOR flash (/dev/qspiflash, GD25 driver in QSPI mode).

nsh> mount
  /data type littlefs
  /flash type littlefs
  /proc type procfs
nsh> echo hello > /flash/hello.txt
nsh> cat /flash/hello.txt
hello
