SYSLOG

SYSLOG Interfaces

Standard SYSLOG Interfaces

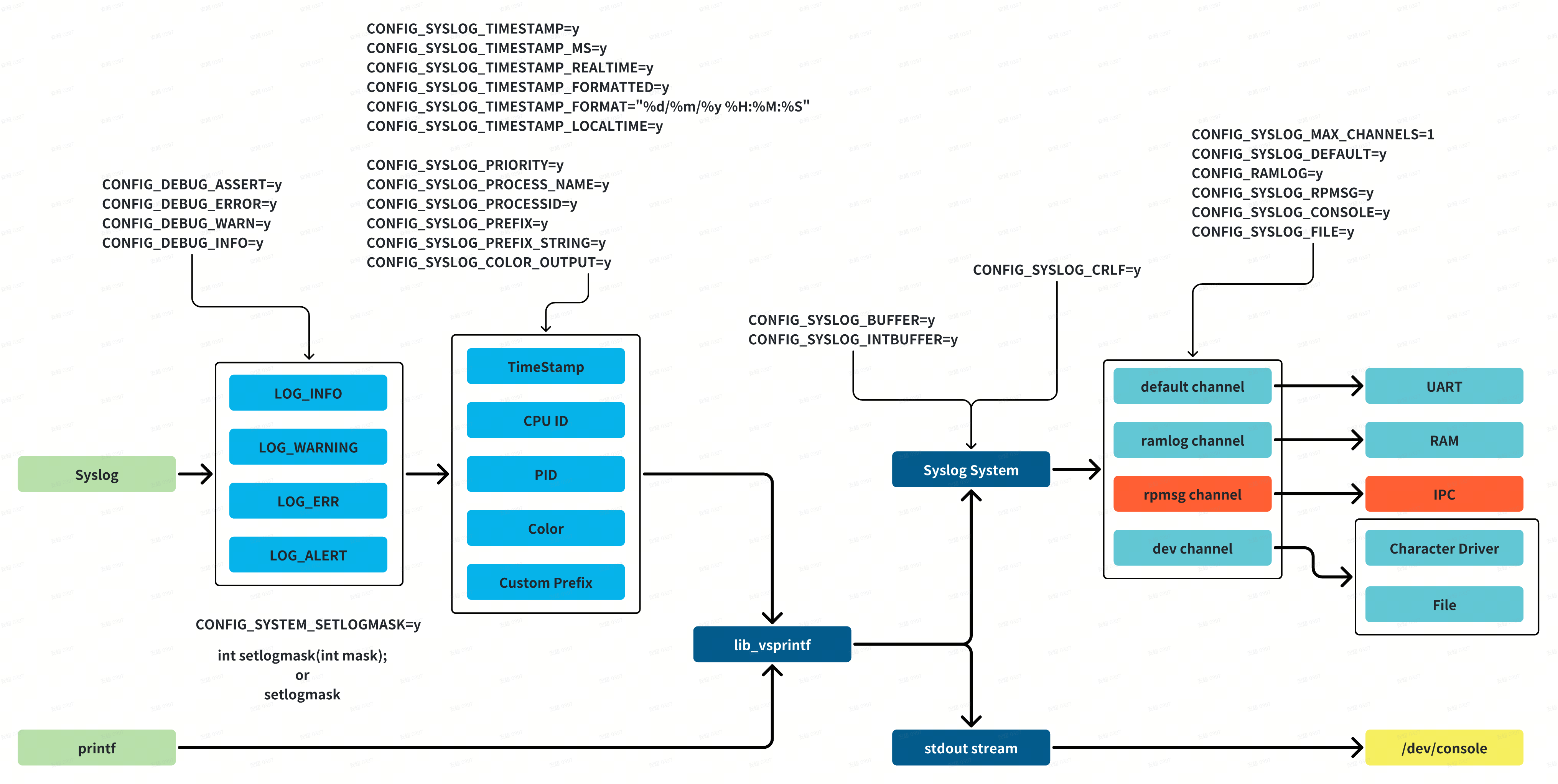

The NuttX SYSLOG is an architecture for getting debug and status information from the system. The syslogging interfaces are defined in the header file include/syslog.h. The primary interface to SYSLOG sub-system is the function syslog() and, to a lesser extent, its companion vsyslog():

The above are all standard interfaces as defined at OpenGroup.org. Those interfaces are available for use by application software. The remaining interfaces discussed in this section are non-standard, OS-internal interfaces.

Debug Interfaces

In NuttX, syslog output is really synonymous to debug output and, therefore, the debugging interface macros defined in the header file include/debug.h are also syslogging interfaces. Those macros are simply wrappers around syslog(). The debugging interfaces differ from the syslog interfaces in that:

  • They do not take a priority parameter; the priority is inherent in the debug macro name.

  • They decorate the output stream with information such as the file name

  • They can each be disabled via configuration options.

Each debug macro has a base name that represents the priority and a prefix that represents the sub-system. Each macro is individually initialized by both priority and sub-system. For example, uerr() is the macro used for error level messages from the USB subsystem and is enabled with CONFIG_DEBUG_USB_ERROR.

The base debug macro names, their priority, and configuration variable are summarized below:

  • info(). The info() macro is the lowest priority (LOG_INFO) and is intended to provide general information about the flow of program execution so that you can get an overview of the behavior of the program. info() is often very chatty and voluminous and usually more information than you may want to see. The info() macro is controlled via CONFIG_DEBUG_subsystem_INFO

  • warn(). The warn() macro has medium priority (LOG_WARN) and is controlled by CONFIG_DEBUG_subsystem_WARN. The warn() is intended to note exceptional or unexpected conditions that might be potential errors or, perhaps, minor errors that easily recovered.

  • err(). This is a high priority debug macro (LOG_ERROR) and controlled by CONFIG_DEBUG_subsystem_ERROR. The err() is reserved to indicate important error conditions.

  • alert(). The highest priority debug macro (LOG_EMERG) and is controlled by CONFIG_DEBUG_ALERT. The alert() macro is reserved for use solely by assertion and crash handling logic. It also differs from the other macros in that it cannot be enabled or disabled per subsystem.

SYSLOG Channels

SYSLOG Channel Interfaces

In the NuttX SYSLOG implementation, the underlying device logic the supports the SYSLOG output is referred to as a SYSLOG channel. Each SYSLOG channel is represented by an interface defined in include/nuttx/syslog/syslog.h:

/* This structure provides the interface to a SYSLOG device */

typedef CODE int (*syslog_putc_t)(int ch);
typedef CODE int (*syslog_flush_t)(void);

struct syslog_channel_s
{
  /* I/O redirection methods */

  syslog_putc_t sc_putc;    /* Normal buffered output */
  syslog_putc_t sc_force;   /* Low-level output for interrupt handlers */
  syslog_flush_t sc_flush;  /* Flush buffered output (on crash) */

  /* Implementation specific logic may follow */
};

The channel interface is instantiated by calling syslog_channel_register().

int syslog_channel_register(FAR syslog_channel_t *channel);

Configure the SYSLOG function to use the provided channel to generate SYSLOG output.

syslog_channel_register() is a non-standard, internal OS interface and is not available to applications. It may be called numerous times as necessary to change channel interfaces. By default, all system log output goes to console (/dev/console).

Parameters:

  • channel – Describes the interface to the channel to be used.

Returns:

Zero (OK)is returned on success. A negated errno value is returned on any failure.

SYSLOG Channel Initialization

The initial, default SYSLOG channel is established with statically initialized global variables so that some level of SYSLOG output may be available immediately upon reset. This initialized data is in the file drivers/syslog/syslog_channel.c. The initial SYSLOG capability is determined by the selected SYSLOG channel:

  • In-Memory Buffer (RAMLOG). Full SYSLOG capability as available at reset.

  • Serial Console. If the serial implementation provides the low-level character output function up_putc(), then that low level serial output is available as soon as the serial device has been configured.

  • For all other SYSLOG channels, all SYSLOG output goes to the bit- bucket until the SYSLOG channel device has been initialized.

The syslog channel device is initialized when the bring-up logic calls syslog_initialize().

int syslog_initialize(void)
#include <nuttx/syslog/syslog.h>
#ifndef CONFIG_ARCH_SYSLOG
int syslog_initialize(void);
#else
#  define syslog_initialize()
#endif

One power up, the SYSLOG facility is non-existent or limited to very low-level output. This function is called later in the initialization sequence after full driver support has been initialized. It installs the configured SYSLOG drivers and enables full SYSLOG capability.

This function performs these basic operations:

  • Initialize the SYSLOG device

  • Call syslog_channel() to begin using that device.

  • If CONFIG_ARCH_SYSLOG is selected, then the architecture-specific logic will provide its own SYSLOG device initialize which must include as a minimum a call to syslog_channel() to use the device.

Returns:

Zero (OK) is returned on success; a negated errno value is returned on any failure.

Different types of SYSLOG devices have different OS initialization requirements. Some are available immediately at reset, some are available after some basic OS initialization, and some only after OS is fully initialized.

There are other types of SYSLOG channel devices that may require even further initialization. For example, the file SYSLOG channel (described below) cannot be initialized until the necessary file systems have been mounted.

SYSLOG Channel Filtering

If you enable the CONFIG_SYSLOG_IOCTL configuration, you can enable syslog to open or close the specified channel at runtime.

You can control SYSLOG channels by using the ioctl command in NuttX with either the SYSLOGIOC_GETCHANNELS or SYSLOGIOC_SETFILTER.

  • SYSLOGIOC_GETCHANNELS. This command can get a list of all channels

  • SYSLOGIOC_SETFILTER. This command enables/disables the specified channel.

In nsh, you can view/set the syslog channel status through the setlogmask command.

  • setlogmask list. Print all channel status

  • setlogmask <enable/disable> <channel>. Enable or disable the specified channel.

Interrupt Level SYSLOG Output

As a general statement, SYSLOG output only supports normal output from NuttX tasks. However, for debugging purposes, it is also useful to get SYSLOG output from interrupt level logic. In an embedded system, that is often where the most critical operations are performed.

There are three conditions under which SYSLOG output generated from interrupt level processing can a included the SYSLOG output stream:

  1. Low-Level Serial Output. If you are using the “default” SYSLOG channel (CONFIG_SYSLOG_DEFAULT) and if the underlying architecture supports the low-level up_putc() interface(CONFIG_ARCH_LOWPUTC), then the SYSLOG logic will direct the output to up_putc() which is capable of generating the serial output within the context of an interrupt handler.

    There are a few issues in doing this however:

    • up_putc() is able to generate debug output in any context because it disables serial interrupts and polls the hardware directly. These polls may take many milliseconds and during that time, all interrupts are disable within the interrupt handler. This, of course, interferes with the real-time behavior of the RTOS.

    • The output generated by up_putc() is immediate and in real-time. The normal SYSLOG output, on the other hand, is buffered in the serial driver and may be delayed with respect to the immediate output by many lines. Therefore, the interrupt level SYSLOG output provided through up_putc() is grossly out of synchronization with other debug output

  2. In-Memory Buffering. If the RAMLOG SYSLOG channel is supported, then all SYSLOG output is buffered in memory. Interrupt level SYSLOG output is no different than normal SYSLOG output in this case.

  3. Serialization Buffer. A final option is the use of an interrupt buffer to buffer the interrupt level SYSLOG output. In this case:

    • SYSLOG output generated from interrupt level process in not sent to the SYSLOG channel immediately. Rather, it is buffered in the interrupt serialization buffer.

    • Later, when the next normal syslog output is generated, it will first empty the content of the interrupt buffer to the SYSLOG device in the proper context. It will then be followed by the normal syslog output. In this case, the interrupt level SYSLOG output will interrupt the normal output stream and the interrupt level SYSLOG output will be inserted into the correct position in the SYSLOG output when the next normal SYSLOG output is generated.

The SYSLOG interrupt buffer is enabled with CONFIG_SYSLOG_INTBUFFER. When the interrupt buffer is enabled, you must also provide the size of the interrupt buffer with CONFIG_SYSLOG_INTBUFSIZE.

SYSLOG Channel Options

SYSLOG Console Device

The typical SYSLOG device is the system console. If you are using a serial console, for example, then the SYSLOG output will appear on that serial port.

This SYSLOG channel is automatically selected by syslog_initialize() in the LATE initialization phase based on configuration options. The configuration options that affect this channel selection include:

  • CONFIG_DEV_CONSOLE. This setting indicates that the system supports a console device, i.e., that the character device /dev/console exists.

  • CONFIG_SERIAL_CONSOLE. This configuration option is automatically selected when a UART or USART is configured as the system console. There is no user selection.

  • CONFIG_SYSLOG_CONSOLE. This configuration option is manually selected from the SYSLOG menu. This is the option that actually enables the SYSLOG console device. It depends on CONFIG_DEV_CONSOLE.

  • CONFIG_ARCH_LOWPUTC. This is an indication from the architecture configuration that the platform supports the up_putc() interface. up_putc() is a very low level UART interface that can even be used from interrupt handling.

Interrupt level SYSLOG output will be lost unless: (1) the interrupt buffer is enabled to support serialization, or (2) a serial console is used and up_putc() is supported.

Note

The console channel uses the fixed character device at /dev/console. The console channel is not synonymous with stdout (or file descriptor 1). stdout is the current output from a task when, say, printf() if used. Initially, stdout does, indeed, use the /dev/console device. However, stdout may subsequently be redirected to some other device or file. This is always the case, for example, when a transient device is used for a console – such as a USB console or a Telnet console. The SYSLOG channel is not redirected as stdout is; the SYSLOG channel will stayed fixed (unless it is explicitly changed via syslog_channel_register()).

References: drivers/syslog/syslog_consolechannel.c and drivers/syslog/syslog_device.c

SYSLOG Character Device

The system console device, /dev/console, is a character driver with some special properties. However, any character driver may be used as the SYSLOG output channel. For example, suppose you have a serial console on /dev/ttyS0 and you want SYSLOG output on /dev/ttyS1. Or suppose you support only a Telnet console but want to capture debug output /dev/ttyS0.

This SYSLOG device channel is selected with CONFIG_SYSLOG_CHAR and has no other dependencies. Differences from the SYSLOG console channel include:

  • CONFIG_SYSLOG_DEVPATH. This configuration option string must be set provide the full path to the character device to be used.

  • The forced SYSLOG output always goes to the bit-bucket. This means that interrupt level SYSLOG output will be lost unless the interrupt buffer is enabled to support serialization.

References: drivers/syslog/syslog_devchannel.c and drivers/syslog/syslog_device.c

SYSLOG File Device

Files can also be used as the sink for SYSLOG output. There is, however, a very fundamental difference in using a file as opposed the system console, a RAM buffer, or character device: You must first mount the file system that supports the SYSLOG file. That difference means that the file SYSLOG channel cannot be supported during the boot-up phase but can be instantiated later when board level logic configures the application environment, including mounting of the file systems.

The interface syslog_file_channel() is used to configure the SYSLOG file channel:

FAR syslog_channel_t *syslog_file_channel(FAR const char *devpath);

Configure to use a file in a mounted file system at devpath as the SYSLOG channel.

This tiny function is simply a wrapper around syslog_dev_initialize() and syslog_channel_register(). It calls syslog_dev_initialize() to configure the character file at devpath then calls syslog_channel_register() to use that device as the SYSLOG output channel.

File SYSLOG channels differ from other SYSLOG channels in that they cannot be established until after fully booting and mounting the target file system. This function would need to be called from board-specific bring-up logic AFTER mounting the file system containing devpath.

SYSLOG data generated prior to calling syslog_file_channel() will, of course, not be included in the file.

NOTE interrupt level SYSLOG output will be lost in this case unless the interrupt buffer is used.

Parameters:

  • devpath – The full path to the file to be used for SYSLOG output. This may be an existing file or not. If the file exists, syslog_file_channel() will append new SYSLOG data to the end of the file. If it does not, then syslog_file_channel() will create the file.

Returns:

A pointer to the new syslog channel; NULL is returned on any failure.

References: drivers/syslog/syslog_filechannel.c, drivers/syslog/syslog_device.c, and include/nuttx/syslog/syslog.h.

SYSLOG RAMLOG Device

The RAMLOG is a standalone feature that can be used to buffer any character data in memory. There are, however, special configurations that can be used to configure the RAMLOG as a SYSLOG channel. The RAMLOG functionality is described in a more general way in the following paragraphs.

RAM Logging Device

The RAM logging driver is a driver that was intended to support debugging output (SYSLOG) when the normal serial output is not available. For example, if you are using a Telnet or USB serial console, the debug output will get lost – or worse. For example, what if you want to debug the network over Telnet? The RAM logging driver can also accept debug output data from interrupt handler with no special serialization buffering. As an added benefit, the RAM logging driver is much less invasive. Since no actual I/O is performed with the debug output is generated, the RAM logger tends to be much faster and will interfere much less when used with time critical drivers.

The RAM logging driver is similar to a pipe in that it saves the debugging output in a circular buffer in RAM. It differs from a pipe in numerous details as needed to support logging.

This driver is built when CONFIG_RAMLOG is defined in the NuttX configuration.

dmesg command

When the RAMLOG (with SYSLOG) is enabled, a new NuttShell (NSH) command will appear: dmesg. The dmesg command will dump the contents of the circular buffer to the console (and also clear the circular buffer).

RAMLOG Configuration options

  • CONFIG_RAMLOG: Enables the RAM logging feature

  • CONFIG_RAMLOG_SYSLOG: Use the RAM logging device for the SYSLOG interface. If this feature is enabled, then all debug output will be re-directed to the circular buffer in RAM. This RAM log can be viewed from NSH using the dmesg command. NOTE: Unlike the limited, generic character driver SYSLOG device, the RAMLOG can be used to capture debug output from interrupt level handlers.

  • CONFIG_RAMLOG_NPOLLWAITERS: The number of threads than can be waiting for this driver on poll(). Default: 4

  • CONFIG_RAMLOG_BUFSIZE: The size of the circular buffer to use. Default: 1024 bytes.

Other miscellaneous settings

  • CONFIG_RAMLOG_CRLF: Pre-pend a carriage return before every linefeed that goes into the RAM log.

  • CONFIG_RAMLOG_NONBLOCKING: Reading from the RAMLOG will never block if the RAMLOG is empty. If the RAMLOG is empty, then zero is returned (usually interpreted as end-of-file). If you do not define this, the NSH dmesg command will lock up when called! So you probably do want this!

  • CONFIG_RAMLOG_NPOLLWAITERS: The maximum number of threads that may be waiting on the poll method.
