ST STM32H735G-DK

Tags: chip:stm32 chip:stm32h7 chip:stm32h735

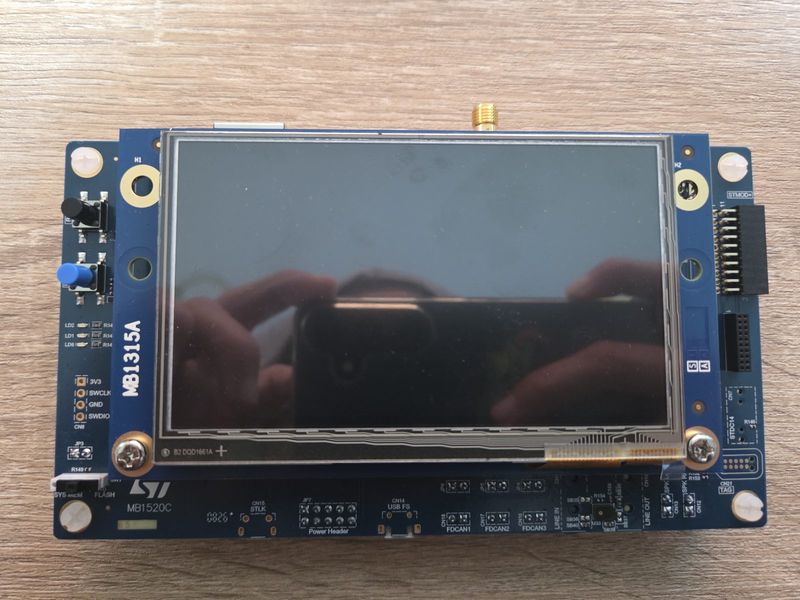

STM32H735G-DK Front

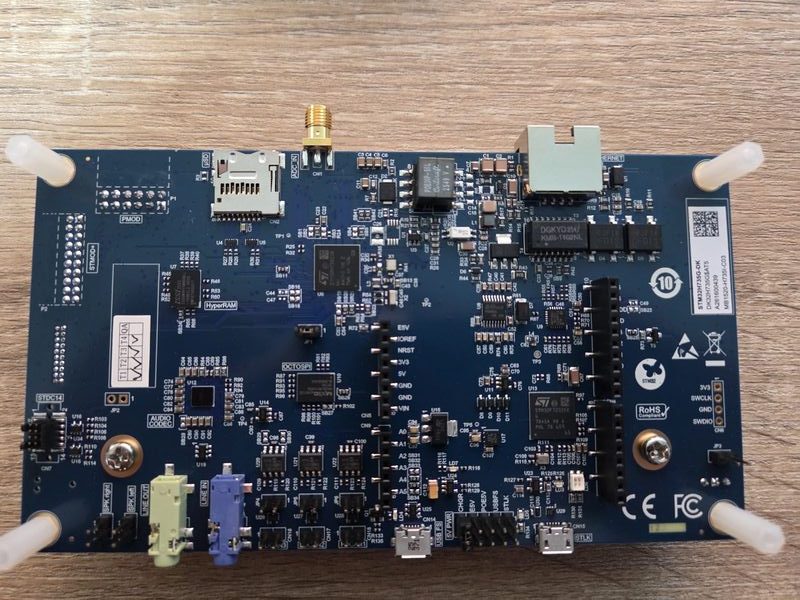

STM32H735G-DK Back

The STM32H735G-DK Discovery board features an STM32H735IGK6 Cortex-M7 with 1 MiB flash, 564 KiB RAM and a 480 x 272 touchscreen.

Configurations

nsh

Basic NuttShell configuration with procfs.

jumbo

OS tests and LED/button drivers. Run ostest from NSH.

lvgl

LVGL widgets demo with the on-board LCD and GT911 touchscreen. Run lvgldemo widgets & from NSH.

fdcan

FDCAN1 and FDCAN2 character drivers (/dev/can0, /dev/can1) in CAN FD mode with bit rate switching and internal loopback. Run can from NSH.

The FDCAN kernel clock is PLL2Q at 80 MHz. FDCAN1 is on PH13/PH14 and FDCAN2 on PB6/PB5. FDCAN3 (PF7/PF6) needs SB29 and SB30 closed.

netnsh

NuttShell with Ethernet (LAN8742A over RMII, PHY address 0).
